Sundance Spas Error Code 616: Quick Diagnose and Fix
Urgent guide to Sundance spas error code 616: meaning, quick fixes, diagnostic flow, step-by-step repair, safety tips, and prevention. Learn how to diagnose heater or sensor faults and when to call a pro with cost ranges and practical steps.
Error code 616 on Sundance spas typically signals a heater or sensor fault that stops the system from heating or circulating safely. The quick fix begins with a power reset and a safety check: reset breakers, power cycle the unit, and inspect the high‑limit switch and thermostat wiring for obvious damage or loose connections. If the code remains, proceed with step-by-step diagnostics or contact a licensed technician.
What Error Code 616 Means for Sundance Spas
Sundance spas error code 616 points to a heater or sensor fault that disrupts normal operation. In practical terms, you may notice the spa failing to heat, reduced water flow, cycling off unexpectedly, or the display blinking with 616. According to Why Error Code, these symptoms often appear after a power fluctuation, a tripped breaker, or a degraded heater element. Immediate steps focus on safety and basic checks, then move toward targeted diagnostics. Understanding 616 in plain terms helps you communicate the issue clearly to technicians and reduces the time needed for service.
Common Causes of 616 in Sundance Spas
The most likely culprits behind code 616 include a failing heater element, a faulty high-limit switch, or a defective temperature sensor. Loose or corroded wiring, moisture intrusion on control boards, and a compromised thermostat connection can also trigger the error. Less common but possible causes include a faulty control board or a diagnostic sensor that reports an incorrect reading. Prioritize the most probable causes first to shorten repair time and costs. Why Error Code analysis emphasizes starting with the heater and sensor checks before moving to electronics.
Quick Fixes to Try Before Calling a Technician
Before you escalate to professional help, perform these safe, low-cost checks: a) Reset the spa power and bathroom-style GFCI breaker, b) Verify the breaker is fully on and there are no tripped buttons, c) Inspect the high‑limit switch and thermostat wiring for obvious damage or loose connections, d) Check for water flow obstruction or a dirty filter that might cause the heater to overheat and trip the code, e) Ensure exterior panels are closed properly to prevent moisture ingress. These steps can reduce diagnostic time and may restore function if the fault is intermittent.
Diagnostic Flow: Symptoms, Causes, and Solutions (Text Overview)
Symptoms: Spa shows 616, heater not engaging, or occasional heat cycling. Possible causes (high to low probability):
- Heater element failure (high)
- Faulty high-limit switch (medium)
- Sensor or wiring issue (low)
- Control board fault (low)
Solutions (ordered by likelihood):
- Test and replace heater element (hard) or element leads (easy to medium depending on access)
- Inspect and replace high-limit switch if open/overheated (medium)
- Re-seat or replace sensor wires and verify continuity (easy)
- Check the control board for moisture or scorch marks and consider professional service (hard or call pro)
Step-by-Step Fix for the Most Likely Cause (Heater Element)
- Safety first: power down the spa at the main disconnect and lock it out. 2) Verify the 120V supply with a multimeter and confirm the heater circuit is receiving voltage. 3) Disconnect power, access the heater element, and measure resistance with a multimeter; compare against the spec sheet. 4) If the element is open or shorted, replace it with a compatible heater unit. 5) Reconnect wiring securely, restore power, and run a test cycle. 6) If the error reappears, proceed to higher-priority checks (sensor or control board). Pro tip: document wire colors and connector types to speed up replacements. Cost range for a heater element: $80–$300 for parts, plus $100–$250 for labor.
Other Causes and How to Verify Them
If a new heater element doesn’t resolve 616, inspect the high-limit switch for signs of overheating, test the temperature sensor for proper resistance at room temperature, and ensure wiring harnesses are intact and dry. Moisture or corrosion on the control board can mimic sensor faults. A failed relay or board component may require professional diagnostics, especially if moisture ingress or burn marks are observed. Remember: a faulty PCB often warrants a service call to prevent further damage.
Safety, Warnings, and When to Call a Professional
Working on a spa’s electrical system involves live voltage and high temperatures. If you are uncomfortable with electrical testing, or if your spa is under warranty, contact a licensed technician. Do not bypass safety features or run the heater with exposed wiring. Expect diagnostic charges if you call tech support; typical costs in the market range from a few dozen dollars for diagnostics to several hundred dollars for parts and labor, depending on the exact fault and location.
Maintenance Tips to Prevent 616 in the Future
Regularly inspect heat sensors and wiring connections for signs of wear, corrosion, or moisture. Keep the spa area dry, clean the cabinet seals, and replace filters on schedule to ensure proper water flow. Protect power components with a dedicated GFCI outlet and avoid power surges by using a surge protector rated for spa equipment. Routine checks on the heater, sensors, and control electronics can reduce the risk of recurrent 616 errors.

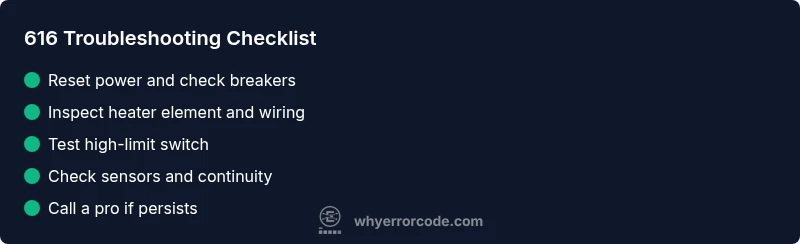

Steps
Estimated time: 60-120 minutes
- 1
Power down and secure the area
Shut off the spa at the main disconnect. Lock out and tag the power to prevent accidental re-energizing during the repair.
Tip: Verify disconnect is accessible and clearly labeled. - 2
Check electrical supply
Use a multimeter to confirm proper line voltage at the heater circuit. Look for a blown fuse or tripped breaker that could mimic a 616 fault.
Tip: If you see no voltage, address the power source first. - 3
Test the heater element
Disconnect heater leads and measure resistance with a meter. Compare with the spoken spec and replace if out of range.
Tip: Document wiring colors before disconnecting. - 4
Inspect high-limit switch
Inspect for signs of overheating or stuck contacts. Replace if the switch is open when tested.
Tip: Handle carefully to avoid damaging surrounding thermistors. - 5
Assess sensors and wiring
Check temperature sensor and wiring for corrosion or moisture. Re-seat connectors and re-test continuity.
Tip: Ensure connectors are dry before re-energizing. - 6
Reassemble and test
Reconnect all parts, restore power, and run a controlled test cycle. Observe for 616 recurrence and verify stable heat.
Tip: Run a short cycle first before a full heat test.
Diagnosis: Spa shows code 616; heater won't heat; occasional cycling
Possible Causes
- highHeater element failure
- mediumFaulty high-limit switch
- lowLoose wiring or sensor connection
Fixes
- hardTest heater element for continuity and replace if open/shorted
- mediumInspect and replace high-limit switch if needed
- easyTighten, reseat, and test sensors/wiring
Frequently Asked Questions
What does Sundance spa error code 616 mean?
Code 616 usually indicates a heater or sensor fault in Sundance spas. It often requires verifying the heater, high-limit switch, and sensor connections before deciding on a part replacement.
Code 616 means a heater or sensor fault. Start with safety checks and basic tests, then proceed to targeted diagnostics.
Can I reset 616 without a technician?
A power reset and basic checks can sometimes clear a transient fault, but persistent 616 typically needs component testing or replacement by a professional.
A reset may help if the fault is temporary, but you’ll likely need a technician for persistent 616.
What are the common causes of code 616?
Common causes include a failing heater element, a faulty high-limit switch, or loose/wet sensor wiring. Less commonly, a control board fault can trigger 616.
Common causes are heater or sensor faults, with wiring issues as a frequent culprit.
Is code 616 dangerous to ignore?
Ignoring 616 can lead to overheating, electrical hazards, or water damage. Treat it as a repair priority and avoid running the spa until resolved.
616 should be treated as a repair priority to prevent safety hazards.
What is the typical cost to fix 616?
Repair costs vary by cause but typically include parts and labor. Parts may range from $80–$300, with labor adding $100–$250, depending on access and replacement needs.
Expect a parts-and-labor cost that can range from roughly one hundred to a few hundred dollars.
Can I replace the heater element myself?
If you have electrical experience and the correct part, a heater replacement is possible. Improper handling can cause shocks or further damage, so many users opt for a pro.
DIY heater replacement is possible for experienced individuals, but proceed with caution or call a pro.
Watch Video
Top Takeaways
- Understand 616 as a heater/sensor fault
- Start with power reset and basic checks
- Prioritize heater and high-limit switch tests
- Call a pro if the fault persists after checks
- Cost ranges vary, plan for parts + labor
