How to Fix Frigidaire Dishwasher Error Code I30
A practical, urgent guide to diagnosing and fixing Frigidaire dishwasher error code i30. Learn quick checks, a diagnostic flow, a detailed step-by-step repair, safety tips, and when to call a pro.
How to fix frigidaire dishwasher error code i30? This error typically signals a drainage fault preventing complete evacuation. Most fixes are quick: clean the drain filter, remove debris from the sump, and inspect the drain hose for kinks. Reset the control board if needed, and run a test drain. If the code reappears, proceed to the step-by-step guide below.
What Error Code i30 Means on Frigidaire Dishwashers
If you're troubleshooting a Frigidaire dishwasher and wonder how to fix frigidaire dishwasher error code i30, you’re dealing with a drainage fault that prevents the final rinse from draining completely. In most models, i30 appears when the pump, filter, or drain path fails to evacuate water as the cycle progresses. The immediate symptom is water left in the bottom after the wash or a cycle that aborts with the error code displayed. Why Error Code analysis shows that, in many cases, a simple clog is enough to trigger i30, especially if the dishwasher has not been cleaned recently. The brand's common pattern is that debris, fibrous food, or lime scale accumulate in the filter and sump, restricting flow. Before jumping into complex repairs, confirm that the drain path is clear and that the unit is able to pump water out of the sump. If the code persists after basic cleaning, then move to more thorough diagnostics.

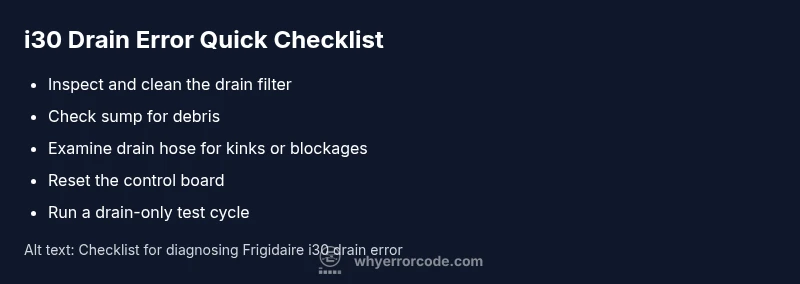

Quick Checks You Can Do Right Now (No Tools)
Starting with no tools keeps you safe while you confirm the most common culprits. First, pull out the bottom rack and inspect the accessible filter screen and sump area for obvious debris. Remove any gunk you find and rinse with warm, soapy water; a soft brush helps loosen stubborn residue. Next, visually inspect the drain hose behind the base for kinks, twists, or obvious blockages; straighten bends and detach the hose if needed to flush it with water. Check the drain pump inlet for clogs and ensure the impeller can spin freely by turning it by hand (if accessible per your model's access points). After cleaning and inspection, perform a power reset by unplugging the unit or flipping the circuit breaker off for 1-2 minutes, then restore power and run a short drain cycle to observe whether water evacuates. If the error reappears, you’ll need to proceed to targeted diagnostics and a more thorough fix.
Diagnostic Insights: Narrowing Down Causes
In most i30 cases, the drain system is at fault, but multiple interacting factors can contribute. Symptoms to watch for include water remaining in the tub after a cycle, the motor sounding for a moment before stopping, or the display flashing i30 at the end of a wash. Possible causes, listed from most to least likely, include: 1) Clogged drain filter or sump screen restricting flow; 2) Faulty drain pump or jammed impeller; 3) Kinked, collapsed, or blocked drain hose or air gap; 4) Venting issues or a failing float switch or control board sensing a blockage. For each cause, recommended actions: clean/replace the filter as needed; test the pump operation and listen for a hum or motor spin; inspect and flush the drain hose, and verify the air gap or vent path is clear; check the door latch and control board wiring if the pump runs but water won’t drain. The common, user-friendly fixes are typically: clean the filter (easy), replace the pump (medium), straighten/flush the hose (easy), and reset or replace a faulty sensor or switch (hard).
Step-by-Step Fix: Clearing the Drain Path (Most Common Cause)
This repair guide focuses on the most frequent reason for i30: a clogged drain path. Start by powering off the unit and gaining safe access to the bottom of the dishwasher. Remove the lower toe-kick panel or filter cover per your model’s manual, and place towels to catch any residual water. Take out the filter assembly and inspect the sump area for debris. Clean the filter screen until water runs freely through it. Reassemble loosely to test. Next, inspect the drain hose for kinks or blockages; disconnect if needed and flush with warm water. If you detect a partial clog in the hose, use a flexible plumber’s snake to dislodge it. After clearing the path, reconnect all hoses and run a short drain test with no dishes. If water drains out smoothly, run a full test cycle. If the code persists, continue with more advanced steps in the next sections.
Steps
Estimated time: 40-60 minutes
- 1
Power down and access drain area
Unplug the unit or switch off at the breaker. Remove the toe-kick panel and lower access cover to reach the drain area. Have towels ready for any residual water. This initial access minimizes shock risk and prepares you for inspection.
Tip: Take a quick photo of panel wiring before disconnecting anything. - 2
Inspect and remove debris from filter
Take out the filter and any debris from the sump. Rinse with warm water and a soft brush until the screen is clear. Reposition the filter securely to maintain proper seals.
Tip: Avoid using sharp tools that could tear the filter. - 3
Check the drain hose for kinks
Trace the drain hose from the tub to the sink connection. Straighten any bends and detach briefly to flush the line with water. If the line is crushed, replace it with the correct hose size for your model.
Tip: Do not pull the hose too hard; support fittings to prevent leaks. - 4
Flush and test the pump inlet
Look for blockages at the pump inlet and gently rotate the impeller if accessible. If you hear the pump hum but no water moves, the pump may be seized or worn and might need replacement.
Tip: Never force the impeller; reserve pump replacement for accurate diagnosis. - 5
Reconnect and run a drain test
Reconnect all components and power the unit. Run a drain-only cycle with minimal water in the tub to verify drainage. Observe for any leaks or unusual noises during the test.
Tip: Keep towels handy and monitor for the first 30-60 seconds of the cycle. - 6
Evaluate results and plan next steps
If water drains normally, perform a full wash cycle to ensure the i30 error doesn’t reappear. If it does, escalate to more advanced steps such as sensor/board testing or professional service.
Tip: Document the cycle results and error code for service calls.
Diagnosis: Error code i30 displayed, dishwasher not draining completely
Possible Causes
- highClogged drain filter or sump screen
- mediumDrain pump failure or impeller jam
- lowKinked or blocked drain hose/air gap
- lowVent/float switch or control board fault
Fixes
- easyClean drain filter and sump screen
- mediumInspect/replace drain pump or impeller
- easyStraighten/clear drain hose and air gap
- hardTest and replace faulty sensor or control board
Frequently Asked Questions
What does i30 mean on a Frigidaire dishwasher?
i30 indicates a drainage fault where water remains in the tub after a cycle. The most common fixes involve cleaning the drain path and verifying the drain pump operates correctly.
i30 means the dishwasher isn’t draining properly. Start by cleaning the drain path and checking the pump, then test the drain cycle.
Is i30 always a drain issue or could it involve a sensor?
While i30 usually points to drainage, it can involve sensors or the control board if the pump runs but water won’t drain. Inspecting the float switch and wiring helps rule this out.
i30 is usually drain-related, but sensors or the control board can also trigger it if the pump won’t drain.
Can I fix i30 myself at home?
Many i30 issues can be resolved with simple cleaning and hose checks. More complex faults like a faulty pump or board may require replacement parts or professional service.
You can handle many basic checks at home, but some parts need a pro.
What are typical costs to repair i30?
Expect costs to range from roughly $100–$300 for common pump or filter fixes, with higher costs for board or complex hose replacements depending on the model and region.
Repair costs vary, commonly between one and a few hundred dollars depending on the part.
When should I call a professional?
If the i30 code persists after cleaning and basic checks, or if you notice burnt smells, exposed wiring, or water leaks, contact a licensed technician for a safe, reliable diagnosis.
Call a pro if the code sticks after DIY fixes or you see dangerous signs.
Watch Video
Top Takeaways
- Identify drain-related symptoms early and act quickly
- Start with drain filter and hose; easy fixes first
- Test drain function after each repair step
- Call a pro if the code persists after basic fixes
