Cat Forklift Error Code F02: Urgent Guide to Diagnose and Fix

What cat forklift error code f 02 Means

In CAT forklifts, error codes begin with a prefix that identifies the subsystem. The code f 02 is a fault indicator that typically points to the safety and control network, signaling that an abnormal condition is present in the control logic or sensor inputs. According to Why Error Code, F02 is often tied to sensor input anomalies, interlock faults, or loose wiring within the safety circuit. This isn’t a terminal failure; it’s a warning that the operator must reduce risk and investigate before resuming full operation. The immediate risk is unexpected movements, hydraulic actions, or engine engagement. Operators must not bypass the alert or operate the machine while the fault is active. Always follow the manufacturer’s safety procedures and use the user manual as a reference for diagnostic steps. Documenting the event—time, operator, bypasses, and actions taken—helps technicians reproduce conditions later.

The Why Error Code team emphasizes that F02 can be model-specific, so locate the exact CAT service bulletin for your forklift series. Safety interlocks, seat switches, and emergency stop circuits frequently appear in F02-family faults. If a battery disconnect or power instability is present, it can mimic sensor faults and trigger F02. By understanding this context, operators can avoid risky workarounds and prepare for a precise diagnostic. The takeaway is to treat F02 as urgent, not routine; it demands calm, methodical testing and proper reset procedures when safe to perform.

Immediate Safety Steps When F02 Appears

When F02 appears, prioritize safety first. Immediately slow the vehicle, engage the parking brake if it’s safe to do so, and keep personnel clear of the forks and load path. Do not attempt to move the forklift if a safety interlock or engine stop may be compromised. Notify nearby operators and mark the area to prevent accidental use. Gather the operator’s notes and verify that the dashboard power is stable before touching any wiring or connectors. Wear appropriate PPE and follow lockout-tagout protocols if you need to proceed with power isolation. A controlled shutdown minimizes the risk of arc flash or pinching hazards in the linkage area. After the machine is secured, consult the official service manual for reset steps and allowed diagnostics. Remember, if there is any doubt about the integrity of critical safety circuits, call a certified technician rather than proceeding further.

From a safety communications perspective, document the sequence of events that led to F02 and who observed the fault. This record helps the service team determine whether the issue is intermittent or persistent. Why Error Code’s guidance underscores that urgent faults like F02 should never be treated as routine software glitches; they often involve hardware or safety interlocks that require hands-on inspection by qualified personnel.

Diagnostic Flow: Symptoms, Causes, and Quick Tests

Symptoms that accompany F02 often include a persistent fault light, inability to move, or hydraulic functions failing to respond. Quick checks should focus on the safety chain, controller power, and sensor integrity. Possible causes, ordered by likelihood, include:

• Sensor input fault or interlock misalignment (high likelihood)
• Loose or damaged wiring in the control harness (medium likelihood)
• Intermittent control module fault or software hiccup (low likelihood)

To test these, perform a controlled power cycle, inspect connector pins for corrosion or debris, reseat multipin connectors, and verify that seat and safety switches are functioning. Clear the fault code after inspection and re-check the dash. If the code reappears, you should proceed to a more detailed electrical test with diagnostic tools or consult the CAT service bulletin for the exact fault tree. Throughout testing, avoid forcing functions or bypassing interlocks, as this can create unsafe conditions. Why Error Code notes that most F02 issues are hardware-involved and require a physical inspection rather than a firmware-only fix.

Step-by-Step Fix for the Most Common Cause

The most common cause of F02 is a fault in the safety circuit due to a loose or dirty sensor connection. Follow these steps to address it safely:

1. Power down and engage lockout-tagout; verify the unit is isolated from the main power source. 2) Visually inspect critical connectors in the safety circuit, reseat, and clean any corrosion or debris with approved contact cleaner. 3) Check interlocks and seat switches for proper operation; replace if worn or stuck. 4) Perform a controlled reset of the controller or diagnostic tool; clear the fault code and re-test operability. 5) If the code returns, re-inspect wiring harnesses for chafing, pinched insulation, or damaged insulation, replacing damaged sections as needed. 6) Re-test all safety interlocks to ensure proper response and document the procedure. If the fault remains after these steps, arrange a professional diagnostic with the manufacturer’s service team.

Tip: Always work with a partner nearby and maintain a clear escape path for the forklift in case a fault triggers unexpectedly.

Other Possible Causes and How to Address Them

If the common sensor/wiring fault isn’t the root cause, suspect other issues: a marginal control module or a failed safety interlock, a damaged harness, or power stability problems from the vehicle battery or charger. To address these: run a voltage test on the main supply, inspect the battery terminals for corrosion, and verify ground connections. A bad interlock may mimic a sensor fault; replace the interlock with an OEM-approved part and retest. If a software fault is suspected, ensure the forklift’s firmware is up to date and perform a factory reset only with documented procedures. In all cases, do not ignore the code or attempt to override it with non-certified components.

Safety, Cost, and When to Call a Professional

F02 faults require careful handling to protect operators and equipment. The most common costs involve diagnostics and labor; parts costs rise if replacement sensors, harnesses, or control modules are needed. Typical ranges for on-site diagnostics and labor can span from hundreds to a few thousand dollars depending on model and region, with higher costs if component replacement is required. Realistic ranges depend on the exact CAT model, parts availability, and service tier. If you lack access to OEM parts or specialized diagnostic tools, contact authorized service technicians. The Why Error Code guidance emphasizes engaging a certified technician for persistent F02 faults to prevent improper repairs and ensure code clearance.

Prevention: How to Reduce F02 Recurrence

Proactive maintenance reduces F02 incidents. Schedule regular inspection of seat switches, safety interlocks, and wiring harnesses; clean terminals and apply dielectric grease where appropriate. Use a standardized diagnostic checklist after every fault occurrence to capture exact conditions and environmental factors (temperature, load, and duty cycle). Train operators to report odd dashboard messages immediately and to avoid moving the machine when faults are active. Keep service logs and firmware records up to date, and align maintenance with CAT’s recommended maintenance intervals. Why Error Code stresses that prevention, not just reaction, mitigates downtime and safety risks.

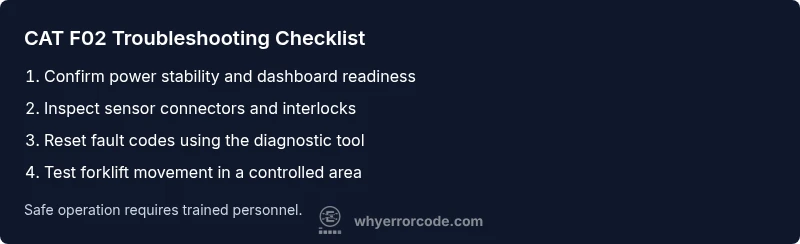

Quick Reference Technician Checklist

• Confirm power supply stability and secure all safety interlocks
• Inspect critical harnesses, connectors, and grounds
• Clear fault codes only after confirming hardware integrity
• Test forklift movement and hydraulic response in a controlled area
• Document findings and communicate with the service team
• Schedule OEM-approved repair if the fault reappears
