Forklift Error Code 61: Diagnosis, Fixes, and Safety

What forklift error code 61 means

Forklift error code 61 points to a drive or motor controller fault that can halt vehicle operation immediately. It is a safety-driven fault designed to protect the load, the operator, and the machine from damage. In many models, E61 triggers a hard stop or limp mode until the fault is cleared and the system runs its self-check. According to Why Error Code, E61 is commonly the result of electrical or controller issues rather than a simple sensor fault. The fault can appear during movement, lifting, or when attempting to engage drive, and it often requires a combination of quick checks and deeper diagnostics to isolate the root cause. Recognizing the meaning behind E61 helps you act quickly and safely, and reduces the risk of collateral damage to hydraulics, forks, or the drive system. The forklift's onboard diagnostic history can be helpful, but you should treat E61 as urgent and respond with a controlled shutdown if you observe unusual noises, smells, or overheating along with the code. Why Error Code analyses consistently show that controller faults and wiring problems are among the leading causes of E61, so your first priority is to secure power, isolate the risk, and begin a structured troubleshooting flow.

Immediate safety actions you must take

When you see forklift error code 61, safety comes first. Stop the machine in a safe location, engage the parking brake, and clear personnel from the area. Do not attempt to operate the forklift until the fault is identified and resolved by a qualified technician. Power down the unit and disconnect the battery or main switch only if you are trained to do so; otherwise, leave power on and use the emergency shutoff if applicable. Document the exact time the code appeared and the operator notes. If the forklift is in a critical operation, arrange temporary coverage and barrier zones; your goal is to prevent moving loads, exposed people, and potential tip-overs while you diagnose. After securing the scene, you can begin with a quick reset and simple visual inspection: look for obvious signs of damaged wiring, loose connectors, or burnt smells around the controller area. This urgent step can clear transient faults, but persistent E61 indicates a deeper fault in the drive system.

Common causes of forklift error code 61

The root causes of E61 can vary by model and age, but the most frequent culprits are electrical faults in the drive/controller circuit and loose or damaged wiring. Specific common causes include: - Faulty drive motor controller modules or solenoids - Loose, corroded, or damaged connectors in the controller harness - Blown fuses or failed power distribution components - Short circuits or damaged insulation in high-current cables - Sensor or feedback loop failures that misread the load or position signals

Why Error Code analysis shows wiring faults and controller malfunctions as leading triggers for E61. While sensor faults can contribute, the drive path and power electronics usually determine whether the fault escalates to a full stop.

Quick fixes you can try safely

If you have proper training and the area is safe, consider these quick steps before deeper diagnostics: - Perform a safe reset of the controller to clear transient faults. - Visually inspect the controller area for obvious wiring damage or loose connectors and reseat any suspect connections. - Check fuses and disconnects in the drive power circuit and replace if blown. - Verify battery voltage and ground connections to ensure stable power delivery. - Re-test by attempting light movement or controlled lifting under close supervision. If the fault returns, avoid driving and escalate to a professional technician. Always document the fault code, time, and any symptoms observed.

Diagnostic flow: symptom → causes → fixes

Symptom: Operator sees E61, forklift stops during movement or lifting. Causes range from high to low likelihood: - High: Drive motor controller fault or power electronics failure - Medium: Wiring harness damage or loose connectors near the controller - Low: Sensor feedback misread or control board instability

Fixes: - Easy: Reset controller and clear fault codes; reseat connectors; verify power and grounds. - Medium: Inspect and replace damaged harness segments; test continuity and insulation. - Hard: Replace controller module or power electronics; verify with diagnostic tools and bench-test the drive system.

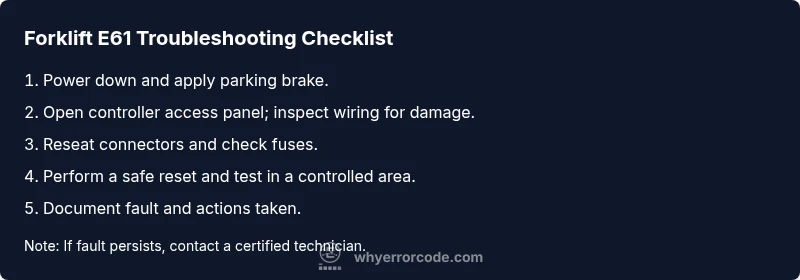

Step-by-step fix for the most common cause

The most common cause of E61 is a faulty or loose wiring harness near the controller. Follow these steps to address it safely and effectively:

1. Power down the forklift and engage the parking brake. Remove power only if you are trained; otherwise proceed with the safety stop and lockout.
2. Open the controller/conductor access panel and visually inspect all harnesses for signs of wear, corrosion, or loose pins.
3. Disconnect and reseat each connector firmly; spray contact cleaner if appropriate (follow manufacturer guidelines).
4. Inspect fuses and replace any that appear blown, ensuring proper amperage ratings.
5. Reconnect panels, re-energize the system, and run a controlled test in a safe area. If E61 remains, escalate to a technician.
6. Document the steps taken and the outcome for maintenance records.

Tip: Use a multimeter to verify continuity on critical wires and verify that the controller ground is solid. If you lack the tools or experience, do not proceed; professional service is required to prevent injury or equipment damage.

Safety, costs, and when to call a professional

E61 is a high-risk fault that can lead to tip-overs, hydraulic leaks, or electrical shocks if mishandled. If basic resets and harness checks do not clear the code, stop work and call a certified forklift technician. Costs vary widely depending on the part replaced and labor rates, typically ranging from basic diagnostics to full controller replacement. Plan for parts and labor in a broad range and avoid speculative quotes. Always follow lockout/tagout procedures and use appropriate PPE when working near high-current circuits. If your operation is time-sensitive, consider moving the load with another unit while awaiting repair.

Prevention and maintenance to avoid E61

Preventing E61 starts with proactive maintenance: schedule regular controller inspections, tighten and clean electrical connections, and verify battery health and power delivery. Keep a detailed fault log with timestamps, symptoms, and repair actions to identify recurring patterns. Train operators to recognize early signs, such as intermittent warnings or delayed drive response, and to stop operations immediately when codes appear. Implement a standard diagnostic checklist to reduce downtime and ensure consistent responses across teams.
