Mitsubishi Electric 7100 Error Code Troubleshooting Guide
Urgent guide for diagnosing and fixing Mitsubishi Electric 7100 error code. Step-by-step fixes, diagnostic flow, and pro tips to get your washer back online quickly.
Meaning: The Mitsubishi Electric 7100 error code signals a fault in drainage or control circuitry that prevents the appliance from starting or completing a cycle. Quick fix: unplug and inspect the drain filter and hose, reseat wiring harnesses, run a soft reset, and try a new cycle. If the code returns, contact a professional.
What the Mitsubishi Electric 7100 error code means
The Mitsubishi Electric 7100 error code is a generic fault indication reported by the appliance's microcontroller when it detects a fault that prevents safe operation. In practice, 7100 is most often tied to drainage or sensor issues, but it can also reflect wiring or control board problems. According to Why Error Code, many users see this code when the machine cannot drain properly, when a sensor fails to report a correct reading, or when the main control logic cannot verify a safe state. The exact meaning can vary by model and firmware, so always cross-check the user manual's fault chart for your exact unit. Quick confirmation steps are simply to power down, verify the door is closed, and inspect obvious drainage or sensor faults. While the code is alarming, it is usually a fault that can be diagnosed with a structured approach rather than replacing major components right away. The goal of this section is to translate the code into practical, testable hypotheses you can verify without specialized equipment. The tone you should adopt is methodical and calm, since a rushed response can lead to unnecessary part replacements.
Symptoms you might notice with this error
- The washer won’t start a cycle and displays 7100 on the panel.
- The drum remains full of water after a cycle or during drainage.
- LED indicators flash in a pattern and the door lock engages abnormally.
- You hear gurgling or humming near the drain area, but water doesn’t empty.
- A reset clears the code briefly, but it returns after the next cycle.
Common root causes behind the 7100 error
Based on user reports and appliance diagnostics, the most common root causes fall into three buckets. High-likelihood issues include drainage problems such as a clogged filter or kinked drain hose. Medium-probability causes are sensor or wiring faults in the control system, or a loose connection between the motor, pump, and board. Low-probability but possible causes include a failing control board, firmware glitch, or a faulty interlock sensor. Each category has its own diagnostic clues, so a systematic approach helps isolate the fault without unnecessary part replacement.

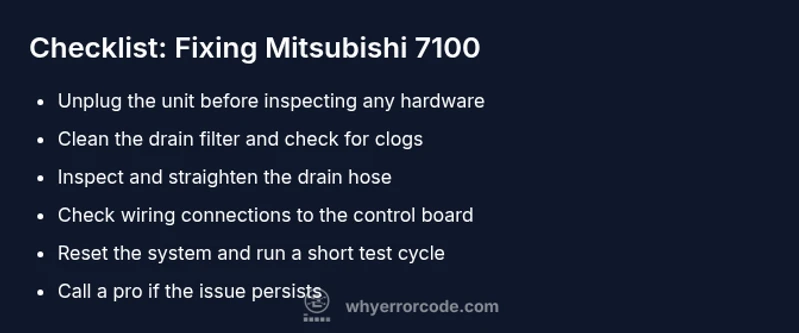

Quick checks you can perform safely
- Unplug the machine and ensure it is completely powered down before touching any components.
- Inspect and clean the drain filter and sump area; remove any lint, hair, or debris obstructing drainage.
- Check the drain hose for kinks, crimps, or sharp bends; straighten and re-secure the hose to prevent backflow.
- Inspect the door latch and interlock connection for signs of wear or looseness.
- If your model supports a soft reset or diagnostic mode, perform it and observe whether the 7100 code clears temporarily.
When to replace parts vs reset and re-test
If basic checks do not resolve the 7100 error, you should escalate to a more thorough diagnostic. A simple drain or filter issue may be resolved with part cleaning or hose adjustment (easy). Sensor or wiring faults require testing with a multimeter and careful reconnection (medium). If the control board or main harness shows damage, replacement or professional servicing (hard) is usually the most reliable path. Remember to document fault codes and cycle patterns to guide future repairs.
Prevention and maintenance to avoid recurrence
Regular maintenance reduces the likelihood of 7100 recurring. Clean the lint filter and sump monthly, inspect hoses for wear, keep the area under the appliance dry to prevent rust on fittings, and ensure the unit is level to avoid strain on the drain system. Periodic checks of door interlocks and wiring insulation can catch issues before they trigger the error. Establish a small maintenance routine you perform every few months to catch wear early.
How Why Error Code informs the troubleshooting path
Why Error Code emphasizes a structured, evidence-based approach to error codes like 7100. By isolating symptoms, listing probable causes by likelihood, and tiering fixes from quick wins to hard repairs, users save time and money. This approach aligns with industry best practices and helps both homeowners and IT professionals work through faults without unnecessary replacements. The guidance here reflects the Brand’s philosophy of practical, reliable diagnostics.
Steps
Estimated time: 45-60 minutes
- 1
Ensure safety and power down
Unplug the washer and switch off power at the outlet. Wait a full minute to discharge capacitors if your model requires it. This prevents electric shock and protects sensitive electronics during inspection.
Tip: Use dry hands and PPE if available; never touch exposed wiring with wet gloves. - 2
Inspect and clean the drain path
Open the access panel if available and remove the lint filter or screen. Rinse it under running water, remove debris, and reassemble. Ensure the sump and drain hose are clear of obstructions.
Tip: Run a quick test cycle after cleaning to verify drainage without a full load. - 3
Check drain hose orientation
Look for kinks, sags, or crushed sections in the drain hose. Straighten and elevate the hose to avoid backpressure which can trigger drainage faults. Ensure the drain end is secured to prevent movement.
Tip: If the hose is too long, trim to recommended length per the manual. - 4
Inspect sensors and connections
Gently disconnect and re-seat the main harness and any sensor connectors you can access. Look for corroded pins or loose terminals. Reconnect firmly and verify there is no visible damage.
Tip: Avoid prying connectors; use gentle pressure and consult the manual for correct harness orientation. - 5
Reset the control board
If your model supports a reset sequence, perform it per the user manual. This can clear transient glitches that mimic 7100. After reset, run a short diagnostic cycle without a full load.
Tip: Don’t reset repeatedly; if the code returns, proceed to the professional repair path. - 6
Decide on professional service if unresolved
If the 7100 error persists after the above steps, arrange professional diagnosis. A trained technician can test sensors, inspect the control board, and perform firmware updates if applicable.
Tip: Document error codes, cycle history, and any audible clues to speed up service.
Diagnosis: Mitsubishi Electric 7100 shows on display, machine stops mid-cycle or will not start
Possible Causes
- highDrainage issue (clogged filter or kinked hose)
- mediumSensor or wiring fault in control system
- lowControl board malfunction or software fault
Fixes
- easyClean the drain filter and inspect/drain hose alignment
- easyCheck for loose wiring connections at the control board and harnesses
- hardReplace control board or arrange firmware/service update (professional)
Frequently Asked Questions
What does Mitsubishi Electric 7100 error code indicate?
7100 is a generic fault indicating drainage or control issues. It often points to a clogged drain, sensor fault, or loose wiring. Consult the manual’s fault chart for specifics on your model.
The 7100 error means there’s a drainage or control problem. Check drainage, sensors, and connections, then reset and test.
Can I fix the 7100 error myself?
Yes, start with simple checks like cleaning the drain and hose, reseating connections, and performing a safe reset. If the error reappears, professional repair is advised.
You can try basic checks yourself, but if it comes back, call a pro.
What is the typical cost to repair this error?
Costs vary by fault and location, but you can expect a service call plus parts. Typical ranges for common faults are around modest to moderate sums depending on parts required.
Service calls plus parts vary; talk to your technician about estimated ranges.
Should I reset the machine to clear the error?
A reset can clear a transient fault and allow a fresh test cycle. If the error returns, continue with a deeper inspection or professional help.
Reset can clear temporary faults, but if it comes back, you’ll need to investigate further or get help.
What if the error repeats after a fix?
If the code reappears after fixes, the fault likely lies with sensors or the control module. A professional diagnostic is recommended.
If it repeats, a deeper diagnostic is needed by a pro.
Does warranty cover error codes?
Warranty terms depend on your policy and purchase date. Check the owner's manual, warranty booklet, or retailer terms for coverage specifics.
Check your warranty terms; coverage varies by policy.
Watch Video
Top Takeaways
- Identify the fault by symptoms, not code alone.
- Start with safe, quick checks before replacing parts.
- Most 7100 issues stem from drainage or sensors.
- Escalate to professional service for control board faults.
- Maintain the washer regularly to prevent recurrence.
