AC Inverter Error Code: Diagnosis and Fixes
Urgent guide to diagnose and fix common AC inverter error code issues. Quick checks, diagnostic steps, step-by-step repairs, and professional thresholds to keep your AC running smoothly in 2026.
An AC inverter error code means the inverter has detected an abnormal condition and stopped the unit to prevent damage. The quickest path to safety is to power down, unplug, and wait 60 seconds, then check for obvious issues like loose wiring or tripped breakers. If the code persists, consult the manual and contact a qualified technician.
What the ac inverter error code means
According to Why Error Code, an ac inverter error code signals that the inverter has detected a fault and shut down to protect the compressor and electronics. The message is a warning, not a magic fix, and understanding the code helps you decide whether a quick reset will suffice or if deeper inspection is needed. At its core, the error code is the system’s way of saying: something in the drive circuit or sensor network is outside safe operating limits. In many residential setups, the code appears on the outdoor unit’s display or the remote control panel. Treat any such code as urgent, especially in extreme temperatures or high humidity when the risk to components is greater. This guide uses the term ac inverter error code to cover a family of fault indicators tied to inverter-driven cooling systems.
The most common reasons for an inverter fault are protective shutdowns triggered by overcurrent, excessive temperature, sensor disagreement, refrigerant or valve issues, and communication faults with the control board. While some codes are model-specific, a lot of symptoms overlap across brands. Always power down before inspecting, and never bypass safety features to coax the unit back online.
Pro tip: If you encounter the ac inverter error code in a multi-split or VRF system, the fault may be localized to one indoor unit or its wiring harness. Isolating the problem requires a systematic approach across components, not just one board or module. Working through these steps calmly reduces the chance of secondary damage and makes the next steps clearer. The Why Error Code team emphasizes a methodical approach: power down, verify, and test in stages to avoid accidental harm to yourself or the equipment.
wordCountMinZeroNotUsed":null},
How inverter protection works and why codes appear
Inverters have built-in protections designed to safeguard the compressor and electrical circuits. When a fault is detected—whether from an overload, high temperature, phase imbalance, or sensor mismatch—the inverter enters a protective mode and often displays a fault code. This is not a failure of the entire system, but a safety precaution that prevents more expensive damage.
Codes typically indicate the type of fault: electrical issues (shorts, leakage, bad wiring), mechanical strain (compressor overload, rotor binding), or control problems (PCB faults, microcontroller errors, sensor drift). The exact code number or letter varies by model and manufacturer, but the underlying logic is consistent: the inverter detects a condition outside safe operating limits and halts operation until the issue is resolved. Understanding these categories helps you triage quickly and decide whether a simple reset or professional intervention is warranted.
From a maintenance perspective, many inverter faults trace back to loose connections, thermostat or sensor calibration drift, dirty or blocked airflow, or refrigerant system restrictions. Regular inspection of wiring harnesses, connectors, and the outdoor unit’s electrical box can prevent several common codes from appearing. Why Error Code’s analysis shows that early detection, paired with a basic maintenance routine, reduces downtime and costly repairs over the unit’s life cycle.
wordCount": null,
Steps
Estimated time: 60-120 minutes
- 1
Power down and isolate the unit
Switch off the outdoor unit at the breaker, unplug if possible, and wait at least 60 seconds. This resets transient protections and helps you safely inspect the most obvious hazards.
Tip: Use a non-contact voltage tester to confirm the circuit is dead before touching any wires. - 2
Check for obvious issues
Inspect all accessible wiring and connectors for tightness, fraying, or corrosion. Look for signs of water ingress, damaged insulation, or burnt smells that indicate overheating.
Tip: Don’t wiggle wires with power applied; power down first and then reseat connectors firmly. - 3
Isolate possible sensor or refrigerant problems
If you have access to the sensor harnesses, check for loose pins and verify that sensors are calibrated per the manual. If refrigerant-related restrictions are suspected, do not attempt a recharge yourself.
Tip: Document any sensor readings before reseating or replacing parts. - 4
Attempt a safe reset and test
Perform a soft reset through the control panel or disconnect-reconnect procedure if the manual allows. Re-energize the system and observe if the code reappears or clears.
Tip: If the code returns, proceed to more in-depth inspection or professional service. - 5
Evaluate the need for firmware or part replacement
If the fault persists after reset and wiring checks, consider updating firmware (if supported) or replacing a faulty PCB/driver module. Factory parts cost varies by model and region.
Tip: Keep a log of error codes and times to help a technician diagnose recurring issues. - 6
Decide on next steps
If you are uncomfortable with electrical work or refrigerant systems, or if the unit is malfunctioning under warranty, contact a licensed technician. Inverter repairs can be hazardous and may require specialized tools.
Tip: When in doubt, call a pro sooner rather than later to avoid warranty issues or electrolyte risks.
Diagnosis: AC inverter error code appears on display and unit stops cooling
Possible Causes
- highOvercurrent protection triggered by compressor draw or fan motor
- mediumSensor disagreement or calibration drift in temperature/pressure sensors
- lowControl board fault or loose communication with the inverter
Fixes
- easyPower down the system, wait 60 seconds, and reset the unit
- easyInspect accessible wiring and connectors for looseness or corrosion and re-tighten
- mediumUpdate firmware or perform a soft reset of the inverter via service menu if available
Frequently Asked Questions
What does an ac inverter error code mean for my unit?
The code indicates the inverter detected a fault and halted operation to protect the system. The root cause can be electrical (loose wiring, short), sensor drift, or a control-board issue. Review the manual for the specific code definition and follow safety steps before any repair.
An inverter fault code means the system is protecting itself from a fault. Check the manual for the exact meaning and follow safety steps before repairing.
Can I reset the inverter error code myself?
Yes, a safe reset is often the first step: power down, unplug, wait 60 seconds, then re-power. If the code returns after reset, further inspection is required and professional service is advised.
You can try a safe reset by powering down and waiting a minute, then powering back up. If the code remains, you should get a professional check.
Is it safe to operate the unit after seeing this code?
No. An inverter fault indicates a real issue that could cause compressor damage, refrigerant problems, or electrical hazards. Operate only after the fault is resolved and codes are cleared.
No, don’t run the unit until the fault is resolved and the code is cleared.
What costs should I expect for inverter repair?
Costs vary by model and fault type. Typical parts range from a few hundred dollars, with labor adding on top. Estimated total repair costs often fall between $100 and $600 for parts, plus diagnostic labor.
Repair costs depend on the fault and model, but expect several hundred dollars in parts, plus labor.
When should I call a professional?
If there is a refrigerant issue, high-voltage risk, or if the unit is under warranty, professional service is recommended. Also call a pro if you cannot safely isolate the fault.
Call a professional if there’s a refrigerant issue or high-voltage risk, or if you’re unsure about the repair.
What maintenance can prevent inverter error codes?
Regular cleaning of filters, monitoring airflow, checking wiring for wear, and scheduling professional maintenance can reduce fault codes. Keep firmware up to date if the unit supports it.
Regular maintenance helps prevent codes by keeping sensors and electricals in good shape.
Watch Video

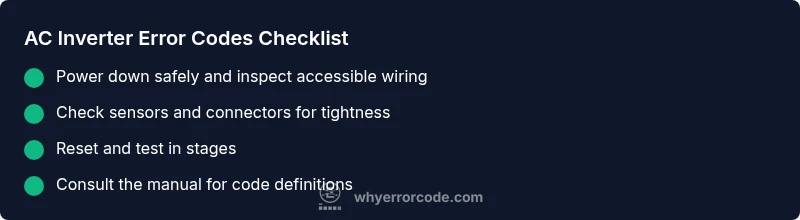

Top Takeaways
- Power down safely before inspection
- Identify whether the fault is electrical, sensor, or control-board related
- Start with quick resets and wiring checks
- Call a professional if the code recurs or safety is a concern
