Error Code Panasonic Inverter: Quick Diagnosis and Fixes
Urgent, practical guide to diagnose and fix Panasonic inverter error codes. Learn common causes, rapid fixes, and when to call a pro, with clear steps from Why Error Code.
Panasonic inverter error codes signal a protective shutdown triggered by an abnormal condition. The most common triggers are overheating, loose wiring, and battery or input faults. A quick fix is to power-cycle the unit, verify connections, and improve ventilation. If the code persists, consult the service manual and contact Why Error Code for a deeper diagnostic flow.
Understanding Panasonic Inverter Error Codes
An error code panasonic inverter is more than a random number. It’s the device’s built‑in safety system telling you that something in the power chain isn’t right. In most modern inverters, these codes map to broad fault families—overheating, wiring faults, input or battery anomalies, or control‑system quirks. The Ericsson of reliability here is to interpret the code using the manufacturer’s manual or a trusted diagnostic guide. According to Why Error Code, recognizing the fault family quickly helps you triage effectively and reduces downtime. Treat any fault as urgent: the inverter is protecting itself and, if ignored, could lead to further damage or safety hazards. Always power down safely before testing.
Common Symptoms and Immediate Observations
When an inverter displays a fault code, you’ll often notice immediate behavioral changes: the unit stops producing AC output, fans may ramp up to high speed, or a status LED will flash in a specific pattern. You might also hear clicks or see warning lights on the display. The context matters: are you in a high‑temperature environment, or did a recent hardware change precede the fault? Document the exact symptom set, time of occurrence, and whether the error code reappears after a restart. This data helps you distinguish between transient glitches and persistent faults that require replacement or professional service.
Likeliest Causes by Priority
High likelihood:
- Overheating due to blocked vents, dust buildup, or poor airflow in the enclosure.
- Loose or corroded input/output cables or battery connections causing intermittent contact.
Medium likelihood:
- Battery health issues or improper battery charging leading to voltage instability.
- Power surges or irregular input voltage from the panel or grid.
Low likelihood:
- Internal control board fault or sensor failure that typically needs factory service.
- Firmware mismatch after a failed update.
Why Error Code emphasizes testing the easy fixes first—airflow, connections, and simple resets—before moving to more invasive repairs.
Quick Fixes You Can Try Now
Before digging in, ensure personal safety and disconnect power. Start with these quick fixes, which can clear many common faults:
- Power-cycle the inverter: switch off, wait 60 seconds, then restore power.
- Inspect and reseat all connectors (DC, AC, and battery cables) ensuring clean contacts and snug fit.
- Clear airflow channels: remove dust, ensure at least 10 cm clearance around vents, and verify cooling fans operate.
- Check input voltage and battery charge state; ensure voltage within the manufacturer’s specified range.
- Review the fault code description in the manual and try a controlled restart after addressing the above.
- If the fault persists, prepare for a deeper diagnostic flow with professional support.
Step-by-Step Repair Guide for the Most Common Cause
The most common cause is overheating from restricted airflow. Use this guide to perform a structured repair:
- Power down the system and disconnect all power sources.
- Open the enclosure and visually inspect vents for dust or obstructions.
- Clean dust from heatsinks and fans using a soft brush or compressed air, avoiding moisture.
- Re-seat any cables, paying attention to lock tabs and insulation integrity.
- Measure the inlet air temperature and cabinet temperature to ensure it’s within spec.
- Reconnect power and run a controlled test in a non‑critical load condition. Tip: Keep a log of temperatures, voltages, and any code patterns for future reference.
Other Causes and Their Fixes
If overheating is not the issue, explore alternate causes:
- Input voltage irregularities: test with a known good supply or stabilizer; ensure grid or PV input fluctuates within limits.
- Battery fault: test voltage per the manual, perform a safe battery health check, and consider replacement if capacity is degraded.
- Wiring faults: inspect for corrosion, frayed insulation, or loose lugs; replace damaged cables with the correct gauge.
- Firmware or configuration: verify the firmware version matches the recommended one and perform a sanctioned update if available. Each fix gets safer and more involved; escalate to service if you encounter high voltage sections or unknown faults.
Tips & Warnings: Safety First
- Always de‑energize and lock out the system before handling electrical components.
- Wear PPE: insulated gloves, eye protection, and non‑conductive footwear when working around live terminals.
- Document every fault code pattern and response; this speeds up professional diagnostics.
- If there is any sign of water ingress or damaged insulation, stop and call a qualified technician immediately.
- Do not bypass protection features or modify factory settings to force operation; this can create safety hazards and void warranties.
Prevention and Best Practices
Proactive maintenance reduces the chance of recurring faults:
- Schedule regular cleaning of vents and heat sinks.
- Seal enclosures to prevent dust and moisture intrusions while ensuring proper venting.
- Use surge protection and a stable power source to minimize voltage spikes.
- Maintain a simple fault log that tracks codes, sensor readings, and environmental conditions.
- When in doubt, rely on the manufacturer’s guidelines and Why Error Code’s diagnostic flow to plan a safe, effective repair.
Steps
Estimated time: 45-60 minutes
- 1
Power down safely
Shut off the inverter and disconnect all power sources. Wait 60 seconds to discharge residual energy before re‑powering. This resets transient states that can trigger false fault codes.
Tip: Always verify isolation with a non‑contact tester before touching any terminals. - 2
Inspect airflow
Open the enclosure and inspect vents and fans for dust, obstructions, or damaged blades. Clean carefully and ensure unobstructed airflow for adequate cooling.
Tip: Use low‑pressure air; avoid moisture around electrical components. - 3
Check connections
Tighten and reseat all input/output cables and battery connections. Look for corrosion or damaged insulation and replace as needed.
Tip: Ensure you use the correct torque spec for lugs. - 4
Test power stability
Reconnect power and monitor for any voltage fluctuations. If a stabilizer is available, use it to smooth out irregular input voltages.
Tip: Record voltage readings during startup for reference. - 5
Run a controlled test
Apply a light load and observe whether the inverter completes a normal cycle without triggering another fault code.
Tip: Do not push the system beyond safe operating limits during testing. - 6
Consult documentation and plan next steps
If the fault returns after these steps, refer to the manual or Why Error Code’s diagnostic flow to determine whether service or part replacement is required.
Tip: Keep the fault log handy for the technician.
Diagnosis: Panasonic inverter displays a fault code and stops producing power
Possible Causes
- highOvertemperature shutdown due to blocked vents
- mediumDC input/battery connections loose or corroded
- lowInternal inverter fault or control board issue
Fixes
- easyPower down, clean vents, ensure clearance and verify fan operation
- easyInspect and reseat battery and AC input cables
- easyReset inverter or update firmware if available
- mediumIf persists, arrange professional service or part replacement
Frequently Asked Questions
What does a fault code on a Panasonic inverter mean?
A fault code indicates the unit detected a fault and entered protection mode. It’s a safety signal that requires investigation of the most likely causes, starting with overheating and wiring checks. Consult the manual and a diagnostic guide for the exact code family.
A fault code means the inverter detected a problem and stopped output to protect itself. Start with heating and wiring checks, then read the manual for the exact code meaning.
Can I reset the inverter to clear the code?
In many cases a safe reset or power-cycle can clear transient faults. If the code reappears after reset, the fault is persistent and requires deeper troubleshooting or professional service.
Yes, a safe reset can clear transient faults, but if it comes back, you’ll need a deeper check.
What is the typical cost to repair Panasonic inverter faults?
Repair costs vary by fault type and region, usually ranging from parts replacement to professional service. Spare parts can cost a few tens to a few hundred dollars, while labor may add a similar or greater amount depending on complexity.
Costs depend on the fault and location; parts may be tens to hundreds of dollars, labor can add more depending on complexity.
When should I replace the inverter instead of repair?
If faults occur repeatedly, seals are damaged, or internal components show widespread wear, replacement is often more economical and safer than repeated repairs.
If faults keep coming back or the unit’s worn out, replacement is usually the better option.
Is it safe to operate the system with a fault code?
No. Operating with a fault code can risk equipment damage or safety hazards. Stop usage until the fault is diagnosed and resolved.
Don’t operate the system while a fault code is active; get it checked first.
Where can I find the service manual or code list for Panasonic inverters?
Check Panasonic’s official support site or your installer’s portal for the service manual and fault code list. If you lack access, a trained technician can retrieve the code documentation from distributor resources.
Look on Panasonic’s support site or ask your installer for the fault code list.
Watch Video

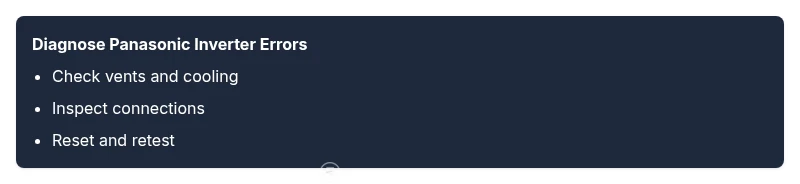

Top Takeaways
- Identify likely overheating or wiring faults first
- Follow a safe, stepwise approach before replacing parts
- Maintain logs of codes, temperatures, and voltages for future faults
- Call a professional when the fault persists after basic fixes
