Mitsubishi 5105 Error Code Guide: Fixes and Diagnostics

What the Mitsubishi 5105 error code means

According to Why Error Code, the Mitsubishi 5105 error code signals a fault in the washer's control path that interrupts the current cycle. This isn't a generic 'washer stopped' message; it's a targeted diagnostic flag the machine uses to indicate a specific fault condition. In practice, 5105 often relates to sensor inputs, valve control, or a communication hiccup between the control board and peripheral components. The presence of 5105 usually means the unit has detected an abnormal reading, a failure to confirm a expected state, or a safety lock that prevents continuing operation. Quick action isn't always the fix; a careful diagnosis helps prevent unnecessary part replacements. This is a situation where a methodical, safety-first approach pays off: power down, unplug the unit, and perform a controlled reset if your model supports it. If the error reappears after reset, you know you’re dealing with a deeper fault.

Quick diagnostic flow you can perform

• Symptoms to look for: The display shows 5105 and the cycle stops mid-operation. The machine may be unresponsive to start commands after the error appears.
• Likely causes (ranked by how often they occur):
  • Sensor or pressure switch misreadings due to dirt, moisture, or wiring issues at the sensor nodes.
  • Blocked or stuck drain pump, or a clogged filter that prevents proper water flow.
  • Control board communication fault or loose harness connections that interrupt signaling.
• Starter fixes (fast, safe, and often effective):
  • Power-cycle the unit: unplug for 60 seconds, then plug back in and run a test cycle.
  • Check visible hoses for kinks, twists, or water leaks and reseat connectors gently.
  • Ensure the drain filter is clean and the pump is free of debris. If your model has a service-access panel, inspect for obvious blockages.
  • Use a soft reset sequence if your model supports it (follow the user manual). If the error persists, move to deeper diagnostics rather than replacing parts blindly.

Most common causes for 5105 and how to prioritize

Cause priority order (from most to least likely):

• Sensor or switch fault causing incorrect readings at the control input. This often happens after loose connections or exposure to moisture.
• Drain system obstruction (filter/pump) that prevents proper water evacuation and cycle progression.
• Control board communication issue, usually triggered by a loose harness or a marginal PCB.
• Inlet valve or water flow anomaly that disrupts cycle timing.
• Software anomaly or firmware quirks that require a reset or minor update if available.

Practical approach: start with the simplest checks (power, unplug/replug, inspect visible connections), then move to the drain/filter area, and finally assess the control board if the problem persists.

Step-by-step fix for the most common cause: drain/pump or filter issue

This is the most frequent cause you’ll encounter with Mitsubishi 5105 errors. Follow these steps to minimize downtime and avoid unnecessary parts replacement:

1. Safety check and power-down: Unplug the machine, wait 60 seconds, and ensure hands are dry before touching any components.
2. Access the drain path: Locate the access panel or service cover, depending on your model.
3. Inspect the drain filter: Remove and inspect for lint, coins, hair, or debris. Clean thoroughly under running water.
4. Check the drain pump and hose: Look for blockages, kinks, or cracks in the hose leading to the pump. Ensure the pump impeller moves freely.
5. Reassemble and test: Re-seat all connectors firmly, plug back in, and run a brief cycle with no load.
6. Observe results: If the 5105 code reappears, proceed to the next set of checks (sensor harness, then control board).
7. Document and proceed: Note the sequence of events and any abnormal noises during operation for future troubleshooting.

Estimated time: about 45–90 minutes for a thorough check and test.

How to test electrical connections safely

• Always unplug the machine before touching any internal components. Use a dry, non-conductive surface to work on the unit.
• Check connectors at the motor, pump, sensor nodes, and control board for signs of corrosion, loose pins, or damaged wires. Press pins gently to reseat if needed.
• Inspect the wiring harness between the main control board and peripheral modules; look for wear or pinching along the loom. If a pin is bent or a pinout looks off, disconnect and re-seat after powering down.
• If you’re comfortable using a multimeter, verify continuity on a pair of wires leading to a sensor or valve, but avoid testing live signals. If uncertain, skip this step and call a pro.

Other potential causes and how to address them

Beyond the drain and sensor issues, other contributing factors can include:

• A failing control board or faulty circuitry that misreads sensor data or mismanages cycle timing. Diagnosis often requires testing harnesses and possibly a board swap.
• Sensor degradation or failure due to age or exposure to moisture. Replacing sensors is sometimes necessary and often more cost-effective than replacing major modules.
• Valve or inlet coil problems, particularly if the machine reports issues during fill. Verify the valve operation and coil resistance if you have access to diagnostic tools.

In many cases, replacing a sensor or valve is straightforward and cost-effective compared to a full board replacement, but professional calibration and programming may be required after replacement.

Safety, when to call a professional

If you notice burning smells, sizzling sounds, or visible damage to wiring, disconnect the unit and call a qualified technician immediately. Electrical components and water around electronics pose serious safety risks. If the problem persists after basic troubleshooting, or if you’re unsure about testing electrical connections, a professional service visit is the safest and fastest path to resolution.

Prevention and maintenance tips to avoid 5105 in the future

• Schedule regular filter cleaning and ensure the drain path remains free of debris.
• Use the appropriate detergent amount to prevent excessive suds that can clog sensors or valves.
• Avoid overloading the washer; this reduces strain on the sensor and valve systems.
• Periodically inspect hoses for cracks or leaks and replace damaged components proactively.
• Keep the machine in a dry environment and address moisture exposure promptly to minimize sensor corrosion. Regular professional tune-ups may also prevent recurring errors.

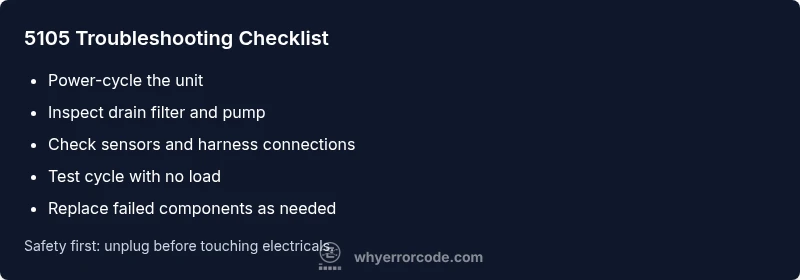

Quick-start checklist

• Unplug and power-cycle the unit.
• Inspect hoses, filters, and the drain pump for blockages.
• Re-seat all connectors and use a controlled reset if available.
• Run a no-load test cycle to observe behavior.
• If 5105 returns, consult the service manual or a technician with the fault code in hand.
