F13 Whirlpool Error Code Washing Machine: Quick Fixes & Full Troubleshooting

What the f13 whirlpool error code washing machine means

The f13 whirlpool error code washing machine signals a drainage fault that triggers a safety stop. In Whirlpool and many compatible machines, F13 appears when the washer cannot empty water within the allotted time, or when sensors misreport water level during a drain attempt. This results in a halted cycle and a fault indicator. Understanding F13 requires distinguishing between a simple clog and a hardware fault. The core idea is that water removal fails, leaving the drum partially filled and the cycle aborted to protect the tub and electronics. The Why Error Code team notes that rapid diagnosis hinges on verifying drainage paths, ensuring the pump can run, and ruling out electrical or controller faults. Document when the code appears to help track patterns and speed up service. According to Why Error Code, a quick reset often clears transient faults and buys time for a closer inspection.

Why this error occurs: common drainage faults

F13 is most often a drainage fault caused by simple obstructions or pump issues. The drain path must be clear from the drum to the outlet; any blockage can prevent water from evacuating properly. In addition to clogs, a weak or failed drain pump, a kinked hose, or a faulty sensor can trigger the same code. Electrical faults or a failing control board can also cause the device to misinterpret a normal drain as a fault. The key is to test each segment of the drainage circuit in a logical order, from the drum to the pump, then to the exit hose. Why Error Code highlights the importance of documenting patterns of when F13 appears, which helps narrow down whether the issue is intermittent or persistent.

Quick checks you can perform safely

• Power off and unplug the washer for at least 60 seconds, then plug back in and restart a drain test. A short reset clears transient faults in many cases.
• Inspect the drain hose for kinks, crushing, or obstruction at the back of the machine. Straighten any bends and ensure the hose sits lower than the drum to aid gravity-driven drainage.
• Locate and inspect the drain filter or pump screen. Remove lint, hair, and debris that can block flow. Rinse thoroughly and reinstall securely.
• Check the drain pump and wiring if accessible: listen for the pump running during a drain cycle; a hum without pumping may indicate a failed impeller or seized pump.
• Run a test drain cycle without clothes to verify water evacuation completes without triggering F13. If the code returns, proceed to deeper diagnostics or professional service.

Step-by-step repair for the most common cause: clogged drain filter

1. Unplug the washer and place a towel or shallow tray under the access panel to catch spills. Access the drain filter or pump screen following your model’s manual.
2. Remove the filter and rinse under running water. Use a soft brush to remove stubborn deposits. Reinstall only when completely clean.
3. Reconnect hoses securely and check for leaks at the filter housing.
4. Refill with a small amount of water and run a short drain cycle to confirm water evacuates freely.
5. If drainage still fails, check the drain hose for kinks and verify the pump can spin freely by manually turning the impeller (where accessible).
6. If the fault persists, test the pump electrical continuity or replace the pump as needed. Always power off before any component handling.

Other causes: beyond the clogged filter

• Drain pump failure: A weak or burned-out pump may still hum but fail to move water. A professional replacement or motor repair can be required.
• Faulty control board or wiring: If the controller does not energize the pump during drain, the F13 fault can reappear after a reset. Replacing or repairing the control board is often necessary.
• Damaged drain hose or siphon issues: A damaged hose or a siphon effect created by improper routing can impair drainage, requiring hose replacement or rerouting.

Safety considerations and when to call a professional

Water damage and electric shock are real risks when working around washing machines. If you smell burning plastics, hear buzzing, or notice damaged cords, stop immediately and contact a licensed technician. If the unit is under warranty, consult the service provider instead of attempting major repairs yourself. For many homes, F13 is fixable with a few clog-removal steps, but repeated faults or complex board issues often require professional diagnosis and replacement parts. Expect cost ranges to include a diagnostic fee plus possible parts replacement; typical repair costs can vary widely depending on the exact fault and part availability.

Prevention tips to avoid f13 errors in the future

• Schedule regular filters and drain path cleanings (every 1–3 months depending on usage).
• Avoid overloading the washer; distribute clothes evenly to prevent drainage backflow.
• Use proper detergents and avoid lint-heavy items that clog filters.
• Inspect hoses for wear and replace them every 5–7 years or if you notice cracks.
• Keep the unit leveled to prevent shifting that can kink hoses or misalign internal components.

Quick-reference troubleshooting chart

• Symptom: F13 appears when draining; Action: Reset, check filter, hose, and pump; Result: If the fault persists, proceed with deeper diagnostics or professional service.
• Symptom: Pump hum but no water movement; Action: Inspect impeller and power supply; Result: Replace pump if impeller is seized or motor fails.

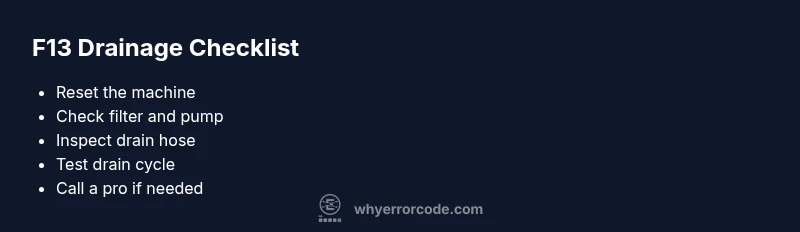

Troubleshooting flow (summary)

• Start with a soft reset and visual inspection of hoses and filters.
• If the fault persists, isolate the problem to the filter, hose, or pump by systematic testing.
• If electrical fault is suspected, contact a professional rather than attempting to repair the control board.
