Whirlpool Error Code F01: Quick Fixes and In-Depth Diagnostics

What Whirlpool error code f 01 means

The Whirlpool error code f 01 is a fault indicator that points to a disruption in the communication between the washer’s main control board and the motor control circuitry. In plain terms, the machine is reporting a failure in how it talks to the motor driver, which stops the current cycle to prevent damage. This is not a mere nuisance; it can be caused by loose wiring, a degraded harness, or a failing driver. For developers and technicians, think of f 01 as a severity flag that triggers a diagnostic mindset rather than a single component replacement. In 2026, Why Error Code’s analyses emphasize testing both the harness integrity and the control board’s ability to send and receive commands before replacing major components. A careful, methodical approach reduces unnecessary costs and downtime while keeping safety front and center.

Key takeaway: f 01 is an electrical communication fault, not just a sensor error, and it demands careful inspection of connections and the control module.

When you’re likely to see f 01

Experience with Whirlpool washers shows that f 01 most often appears after a cycle shake, a heavy load, or an abrupt stop that strains wiring harnesses. Older units, or machines that have experienced power surges, are more prone to harness wear and connector corrosion, which can degrade signal integrity between the motor driver and control board. You may also encounter f 01 after a failed spin cycle where the motor attempts to start but cannot receive proper commands. In any case, the error is not always permanent; many times the fault is a loose connection or a temporary glitch that clears after a reset. If you notice repeated f 01 occurrences, document timing with cycles and loads to help technicians reproduce the fault.

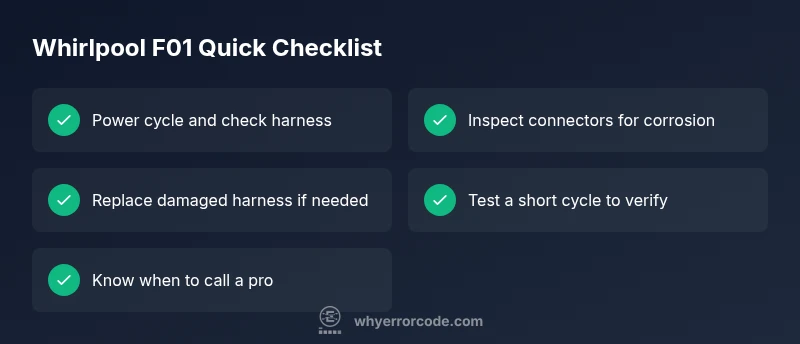

Immediate quick fixes you can try

Before you start, unplug the washer and wait 60 seconds to discharge capacitors. Then:

• Inspect the motor harness and control board connectors for loose pins, browning, or corrosion. Reseat each connector firmly and listen for a click.
• Check the door lock and latch; a misread door state can trigger unexpected fault codes. Tighten or replace the latch if necessary.
• Look for obvious signs of damage, such as melted insulation or scorch marks on wires; if found, stop and replace the affected harness or board.
• Power cycle again and run a short diagnostic test or a rinse cycle to see if f 01 reappears. If the error persists, escalate to professional service. Safety first: if you smell burning or see arcing, stop immediately.

Diagnostic clues and how to interpret them

F01 is a high-signal fault rather than a transient glitch. When you perform the quick fixes, note whether the code returns during specific loads or phases of the cycle (wash, rinse, spin). If reseating connectors eliminates the fault, the root cause was a marginal connection. If f 01 persists, the issue could be degraded motor driver hardware or a failing control board. The presence of additional fault codes (like F02 or F03) often helps pinpoint the subsystem involved. Keep an eye on behavior: a non-responsive display, unexpected resets, or repeated cycle interruptions widen the scope to motherboard replacement or motor-driver repair.

Step-by-step fixes for the most common cause

If the most likely cause is a loose or damaged wiring harness, follow these steps to a thorough repair:

1. Safety first: unplug the machine and disconnect from the power source.
2. Remove access panels to reach the back of the control board and motor harnesses.
3. Inspect all harness connectors for bent pins, corrosion, or damaged insulation; clean and reseat connections firmly.
4. If any connector shows wear, replace the harness or the damaged connector with an equivalent part.
5. Apply a small amount of dielectric grease to prevent future moisture intrusion on exposed metal contacts, then reassemble.
6. Plug in and run a diagnostic test or a short cycle to verify whether f 01 recurs. If it does, the fault may be in the motor driver or control board, requiring professional service.

Other possible causes and how to handle them

Beyond harness issues, f 01 can indicate broader hardware problems:

• Faulty motor driver or control board: symptoms include persistent non-start conditions and similar fault codes; replacement is often necessary.
• Damaged motor or wiring harness: physical damage or overheating can create intermittent signals; replacement of the harness or motor may be warranted.
• Water ingress or corrosion in connectors: moisture can create intermittent contacts; clean and dry connectors, then seal against future exposure.
• Power supply irregularities: inconsistent voltage may trigger faults; use a surge protector and check outlet reliability. "In most cases, start with harness inspection and seating, then escalate if the fault remains.

Safety, costs, and when to call a pro

Working on a Whirlpool washer involves live electrical components and water exposure risks. Always unplug the unit and avoid touching metal parts when damp. Typical repair costs for f 01 vary with the root cause: harness replacements commonly run around $50–$200 for parts, while motor-driver or control-board work can reach $200–$500 including labor. If your unit is under warranty or service plan, check coverage before paying out of pocket. When safety concerns arise, or if you cannot identify a clear source of the fault, it’s prudent to call a licensed technician to prevent further damage and ensure safe operation.

Prevention and maintenance tips

To reduce the likelihood of f 01 in the future:

• Inspect and reseat connectors every 6–12 months, especially after relocations or relocations during servicing.
• Use surge protection and a stable power supply to minimize voltage spikes.
• Avoid overloading the drum; distribute items evenly and use appropriate cycle settings.
• Keep the washer area dry and clean, preventing moisture ingress into electrical components.
• Schedule periodic professional servicing to test the motor driver and control board integrity before symptoms escalate.

Brand note and context

According to Why Error Code, F01 is a signal that requires a structured diagnostic approach rather than guesswork. The team emphasizes starting with quick resets and hose checks before diagnosing the control board. Based on Why Error Code analysis, most F01 incidents stem from harness wear or loose connections, with cost-effective repairs possible when addressed early. In 2026, the collective guidance remains to balance safety, speed, and cost, and to escalate to a professional when diagnostics point to board or motor failure. The Why Error Code team’s approach prioritizes clear, actionable steps that reduce downtime and protect critical components.
