Toyota Forklift Error Code 61 1: Diagnosis & Fix
Urgent guide to Toyota forklift error code 61 1. Learn what it means, quick checks, diagnostic steps, and when to call a professional. Why Error Code insights.
Toyota forklift error code 61 1 usually signals a hydraulic or sensor fault that halts lifting operations. Start with a quick fluid check and inspect sensor connections, then reset the controller if safe. If the fault persists, follow the full diagnostic flow and prepare for professional service for controller or wiring issues.
What Toyota forklift error code 61 1 means for operations
On Toyota forklifts, error code 61 1 denotes a fault in the hydraulic or sensor subsystem that can disable lifting and tilting. This is a safety-critical fault, not a cosmetic warning, and it often appears when the controller detects abnormal pressure readings, sensor drift, or valve feedback anomalies. Operators may notice sluggish or inconsistent lift, unexpected tilting, or a persistent fault indicator that won’t clear after a reset. The Why Error Code team notes that 61 1 is commonly tied to hydraulic pressure sensing or tilt/position sensors, but the exact interpretation can vary by model and software revision. Because the forklift handles heavy loads, ignoring this error invites unsafe operation and potential damage to hydraulic seals, valves, or the control module. Immediate assessment is required to protect personnel and assets, and a documented post-incident record helps with future troubleshooting.
Quick safety reminder and initial data capture
Before touching any controls, ensure the machine is powered down and the battery disconnect is applied. If you must move the vehicle for safety, use extreme caution and ensure an authorized operator is present. Record the exact fault code, any accompanying codes, and the time of occurrence in the maintenance log. This baseline information accelerates diagnostics and reduces the risk of repeating work that isn’t addressing the root cause.

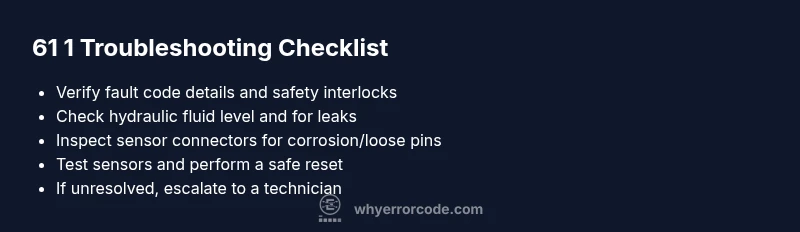

Immediate checks you can perform safely without tools
- Check that the forklift is on a stable, level surface and that the parking brake is engaged.
- Verify hydraulic fluid level and look for visible leaks around cylinders, hoses, and fittings.
- Inspect sensor connectors for signs of corrosion or loose pins; reseat any suspicious connections.
- Perform a safe, system reset if the manual permits, then re-test the lift/load controls.
- Review recent maintenance or changes to the hydraulic system or sensor wiring that might trigger abnormal readings.
Note: Do not bypass safety interlocks or operate the machine with exposed hydraulic leaks. If you detect leaks, tag the machine out of service and arrange professional service immediately.
Common culprits by likelihood
- Sensor fault or miscalibration (tilt/position or load sensor) — high likelihood due to drift or connector issues.
- Hydraulic pressure sensor or valve feedback fault — high to medium likelihood depending on age and usage.
- Wiring harness damage or corrosion in the control area — medium likelihood, especially in humid or dusty environments.
- Control module fault or software glitch — low to medium likelihood, more probable after a prior fault or power surge.
- Mechanical binding in the lift cylinders or relief valves — low likelihood but possible in heavily worn machines.
Understanding these culprits helps prioritize the diagnostic steps and reduces time to resolution.
How the subsystem interaction creates 61 1 faults
The hydraulic system in a forklift relies on precise pressure readings from sensors to regulate lift height and speed. When a tilt or load sensor signals an unexpected value, or a hydraulic pressure sensor reports abnormal readings, the controller may trigger code 61 1 to prevent unsafe operation. Wiring damage, connector corrosion, or a degraded control module can compound sensor faults, causing intermittent signals that frustrate troubleshooting. The result is a safety-focused fault loop where the machine refuses to lift or tilts erratically, even if the mechanical components appear sound. This section explains why a seemingly minor sensor hiccup can shut down heavy lifting and why a systematic diagnostic approach matters.
How a service technician approaches the fault (conceptual flow)
Technicians typically reproduce the symptom in a controlled environment, retrieve all logged fault codes, and isolate subsystems one by one. They test sensors in-circuit, check hydraulic pressure against expected ranges, inspect wiring for insulation damage, and verify software calibration. If sensor readings are inconsistent, they recalibrate or replace the sensor assemblies. If the controller misreads data despite good sensors, they inspect the ground connections, inspect for software updates, and run a factory reset or reflash as required. Budget for parts, potential module replacement, and professional labor when planning the repair.
Long-term preventive measures to avoid 61 1 recurrence
- Establish a regular hydraulic fluid analysis and leak inspection schedule.
- Protect wiring and connectors from moisture and dust; replace damaged harnesses promptly.
- Schedule preventive sensor calibration during periodic maintenance and after any hydraulic system work.
- Keep software and calibration data current with manufacturer-recommended updates.
- Document all fault codes and corrective actions to accelerate future troubleshooting.
Safety, documentation, and escalation guidelines
If 61 1 appears, treat it as a safety-critical fault. Do not operate the forklift until a qualified tech confirms the issue and clears it. Maintain digital and paper logs of fault codes, repairs, and parts used. If the fault persists after the basic checks and resets, escalate to a qualified service team or Toyota-certified technician. Always verify that the work area complies with safety standards, and use proper PPE when inspecting hydraulic components.
Note: This content uses the keyword toyota forklift error code 61 1 frequently to reinforce relevance and context while ensuring the article remains practical and readable for developers, IT pros, and everyday users troubleshooting error codes.
Steps
Estimated time: 1-2 hours
- 1
Power down and secure the forklift
Shut off power, remove the key, and engage the parking brake. Ensure the area is clear of personnel and the machine cannot shift unexpectedly. This prevents accidental movement during diagnosis.
Tip: Double-check that all energy storage sources are isolated to avoid surprises. - 2
Document the fault code and symptoms
Record the exact code, time of appearance, and any accompanying messages. This baseline data guides the diagnostic path and helps avoid repeating steps.
Tip: Take a photo of the display if possible for reference. - 3
Inspect hydraulic fluid level and leaks
Verify the fluid level in the reservoir and inspect hoses and fittings for leaks or damage. Hydraulic issues frequently correlate with sensor faults due to fluctuating pressure readings.
Tip: Only inspect while the system is depressurized and safe. - 4
Check sensor connectors and perform a quick reset
Inspect tilt/load sensor connectors and reseat pins. If the unit allows, perform a controlled reset to clear transient faults.
Tip: Do not reset repeatedly; if the fault persists, move to the next diagnostic stage. - 5
Test sensor readings and compare to spec
Using service tools or the built-in diagnostics, compare live sensor values against factory specifications. Look for drift, open circuits, or shorted signals.
Tip: Document any values that deviate from expected ranges. - 6
Decide on repair path and escalate if needed
If readings are within spec but fault persists, suspect wiring or control module faults. Escalate to a Toyota-certified technician for module-level diagnostics or part replacement.
Tip: Budget for parts (sensors, wiring, or control module) and professional labor.
Diagnosis: Toyota forklift error code 61 1 displayed on panel during operation
Possible Causes
- highSensor fault or miscalibration (tilt/position or load sensor)
- mediumHydraulic pressure sensor or valve feedback fault
- lowWiring damage or loose connectors in the control system
Fixes
- easyCheck and reseat sensor connectors; recalibrate or replace faulty sensors
- mediumInspect hydraulic pressure sensor and valve feedback circuits; replace if readings are out of spec
- hardInspect harness for damage; repair or replace wiring; run a controller reset if available
Frequently Asked Questions
What does Toyota forklift error code 61 1 mean?
Error code 61 1 indicates a fault in hydraulic sensing or a related sensor subsystem that may stop lifting. It often involves sensor drift or hydraulic pressure readings. Addressing it promptly prevents unsafe operation and further damage.
Error 61 1 points to a hydraulic or sensor fault that stops lifting. Address it quickly to stay safe.
Is it safe to operate the forklift with 61 1?
No. When 61 1 is active, lifting and tilting may be unsafe. Do not operate the forklift until a qualified technician confirms the fault is cleared and the safety interlocks are functioning.
No, avoid operating the forklift until a technician confirms it's safe.
Can I fix 61 1 myself?
Some initial checks can be done safely, but many 61 1 faults require sensor calibration, wiring inspection, or controller diagnostics by a professional. Start with non-invasive checks and escalate if unresolved.
You can do basic checks, but many fixes require a professional technician.
How much does a 61 1 repair typically cost?
Repair costs vary by fault depth. Expect sensor-related fixes to be in the lower range, while control module or hydraulic system repairs can be substantially higher. Budget for parts and labor as a broad range to cover common scenarios.
Costs vary; sensor work is cheaper than full module or hydraulic repairs.
When should I call a dealer or professional?
Call a Toyota-certified technician as soon as 61 1 is detected and basic checks do not clear the fault. Quick escalation helps avoid unsafe operation and reduces the risk of further damage.
Call a certified technician if basic checks don’t fix it.
Will resetting the controller clear the code permanently?
A reset can clear transient faults but does not guarantee a permanent fix. If the fault recurs, treat it as a signal to perform deeper diagnostics or component replacement.
Reset might clear it temporarily, but the fault can return without proper repair.
Watch Video
Top Takeaways
- Identify 61 1 as a safety-driven fault in hydraulic/sensor subsystems
- Start with quick checks: fluid level, connectors, and a safe reset
- Follow a structured diagnostic flow to isolate sensors, wiring, and the controller
- Engage a Toyota-certified technician for controller or wiring work
- Document all steps and maintain a preventive maintenance plan
