Toyota Forklift Error Code H1 3: Quick Fix & Diagnostics

What the H1 3 code means on Toyota forklifts

When you see the keyword phrase toyota forklift error code h1 3 on the dash, it generally points to a hydraulic subsystem fault that is detected by the on-board controller. Exact definitions can vary by model and year, so treat H1 3 as a signal rather than a guaranteed root cause. The Why Error Code team recommends verifying the fault with the vehicle’s diagnostic tool or service manual to confirm whether the root cause is a sensor, wiring, or hydraulic pressure issue. In urgent situations, always prioritize safety and stop operations until the fault is cleared or assessed by a professional.

Key takeaway: H1 3 is a hydraulic-related diagnostic code that requires careful verification across the hydraulic circuit, sensor wiring, and controller data.

Why this code is urgent: safety and production impact

The moment toyota forklift error code h1 3 appears, safety and productivity are at risk. Hydraulic faults can lead to uncommanded lift or tilt, sudden drops, or loss of braking assist in some configurations. Even if the machine seems to operate, lingering faults can cause unpredictable behavior under load. For facilities relying on forklifts for throughput, a quick, safe resolution minimizes downtime and reduces the chance of collateral damage to materials or equipment. The Why Error Code analysis highlights that hydraulic-sensor related codes are among the most common forklift faults, so a structured, prompt approach is warranted.

Action signal: Do not ignore H1 3—plan a targeted inspection and, if needed, call in a technician sooner rather than later.

Symptoms to look for and how they relate to H1 3

Look for a mix of indicators that tie back to hydraulic sensing: erratic lift/tilt behavior, abnormal hydraulic noises, pressure warnings on the dash, and occasional false sensor readings. You might notice that the control system intermittently refuses to move, or the readings from the hydraulic sensor drop out in certain positions. These symptoms align with a fault either in the sensor circuit, damaged wiring harness, or a hydraulic pressure path issue. The presence of multiple symptoms increases the likelihood of a sensor or wiring fault being the primary cause behind toyota forklift error code h1 3.

Pro tip: Combine symptom tracking with the diagnostic tool readout to narrow down whether the problem is sensor-based or wiring-based.

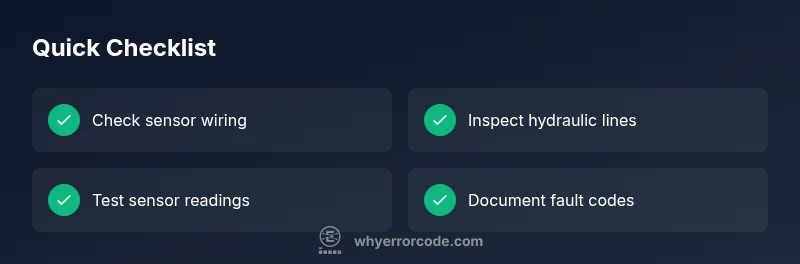

Quick checks you can perform safely

Before you reach for tools, power down and engage the parking brake. If you have access to a diagnostic tool, pull the current fault codes and snapshot the live sensor readings. Start with the simplest checks:

• Inspect the sensor connectors for corrosion, bent pins, or loose wires near the hydraulic pump and lift cylinder.
• Look for damaged insulation or exposed wires along the sensor harness; replace or repair as needed.
• Check visible hydraulic hoses for leaks, cracks, or kinks that could affect pressure readings.
• Verify that hydraulic fluid is at the correct level and that the reservoir cap is sealed.

If you spot obvious wear or damage, do not attempt risky repairs; document findings and prepare for professional service. These quick checks help validate toyota forklift error code h1 3 without diving into risky mechanical work.

Diagnostic approach: symptom → causes → solutions

To systematically address toyota forklift error code h1 3, start from symptoms, map to probable causes, then apply fixes in order of likelihood. The high-probability path usually begins with a faulty hydraulic pressure sensor or its wiring; medium likelihood includes harness damage or connector corrosion; low likelihood covers ECU or CAN bus issues that require specialized tooling. Solutions progress from safe, quick fixes to complex repairs that may involve replacement parts.

• Symptom: Lift/tilt irregularities or fault display
• Likely causes: Hydraulic pressure sensor fault (high), Wiring issue (medium), ECU fault (low)
• Solutions: reseat/clean sensor connectors, inspect wiring, run a diagnostic session and clear codes, replace sensor or harness if needed, consult a pro for ECU-related faults.

Step-by-step fix (most common cause) – Scope and safety first

The most common root for toyota forklift error code h1 3 is a sensor or its wiring. Follow these careful steps to perform a repair while maintaining safety. If you’re unsure at any point, stop and call a professional.

• Step 1: Power down and secure the forklift; engage the parking brake and disconnect the battery if safe to do so.
• Step 2: Connect a diagnostic tool to pull the H1 3 code and record live sensor readings, focusing on hydraulic pressure sensor data.
• Step 3: Inspect the hydraulic pressure sensor and adjacent wiring harness for corrosion, loose pins, or damaged insulation; reseat connectors and replace any compromised wiring.
• Step 4: Check for visible leaks and confirm the sensor’s ground reference is intact; address any hydraulic leaks before retesting.
• Step 5: Clear the fault code, restart the controller, and cycle the lift/tilt to confirm that the code does not reappear.
• Step 6: If the fault persists after basic checks, plan for a sensor replacement or harness repair by a qualified technician; if ECU-related symptoms emerge, professional service is required.

Estimated time for this fix: 60-90 minutes under normal conditions. If parts are unavailable or the fault reoccurs, expect longer service time.

Other causes: alternative faults and their fixes

If the initial sensor/harness checks don’t resolve toyota forklift error code h1 3, broaden the scope to other possible causes. Common alternates include an intermittent CAN bus communication fault, a faulty hydraulic pump signal, or a degraded control module. Each scenario requires progressively deeper diagnostics and may involve specialized tools or software updates. Always verify the system is de-energized before touching any electrical components, and avoid attempting hydraulic work without appropriate training.

• Alternate cause: CAN bus communication fault — verify connector integrity and module power; test with a different tool or PC to confirm data integrity.
• Alternate cause: Hydraulic pump signal fault — test pump output, pressure transducer wiring, and replace faulty components as indicated by readings.
• Alternate cause: Control module fault — assess software version, perform updates if available, or replace the module under technician supervision.

Safety reminders and when to call a pro

Hydraulic systems operate under pressure, and risk is always present during inspection. If you suspect significant leaks, high-pressure fluid exposure, or uncertain sensor wiring, stop work and call a qualified forklift technician. Keep a documented log of fault codes, symptoms, and attempted fixes to help the technician reproduce the issue. In industrial environments, establish lockout/tagout procedures and use proper PPE when testing or replacing hydraulic components. The goal is to restore safe operation with minimal downtime while protecting personnel and assets.
