Whirlpool Dishwasher Error Code 6: Diagnosis and Fix
Urgent guide to diagnosing and fixing Whirlpool dishwasher error code 6. Learn symptoms, causes, step-by-step repairs, safety tips, and when to call a pro. Why Error Code provides expert guidance.
Whirlpool dishwasher error code 6 indicates a misread by the water level sensor or float switch, which prevents proper filling. The quickest path to relief starts with a power reset, a check of the water inlet, and a careful float switch inspection. If the code persists, run a diagnostic cycle and plan for a sensor or control repair by a pro.
What Whirlpool Dishwasher Error Code 6 Means
Whirlpool dishwasher error code 6 signals a fault in the water level sensing system. When the machine cannot read the tub’s water level accurately, it may refuse to fill fully, halt during a cycle, or fail to advance. This is a protective feature to prevent overflow and poor cleaning performance. According to Why Error Code, code 6 is commonly tied to sensors or float-switch issues rather than pump or motor faults. Before assuming a costly repair, verify basic power, confirm the water supply is open, and attempt a controlled reset. A systematic approach helps you isolate whether the problem is a simple debris issue in the float chamber or a more involved sensor or control-board fault. This clarity saves time and money while keeping Whirlpool dishwasher error code 6 from becoming a mystery.
Symptoms You Might See with Code 6
Look for a few telltale signs that whirlpool dishwasher error code 6 is active:
- The machine fills inconsistently or stops during fill.
- The wash cycle aborts with a blinking or steady light indicating an error.
- You notice a delayed or absent water level reading when the door is closed.
- The control panel shows a fault symbol or reserves energy to prevent start.
These symptoms point toward a sensing or level-reading fault in whirlpool dishwasher error code 6 and help you triage the next steps more efficiently.
Most Likely Causes (Ranked by Likelihood)
- Float switch stuck or water level sensor misread — high. A blocked float chamber or debris can fool the sensor into thinking the tub is full or empty.
- Clogged water inlet filter or screen — medium. Sediment or mineral buildup can restrict water flow and trigger level misreads.
- Wiring harness or sensor connection loose — low. A loose connector can create intermittent sensor signals.
- Control board calibration drift — low. Over time, programming drift may misinterpret sensor data, especially after power events.

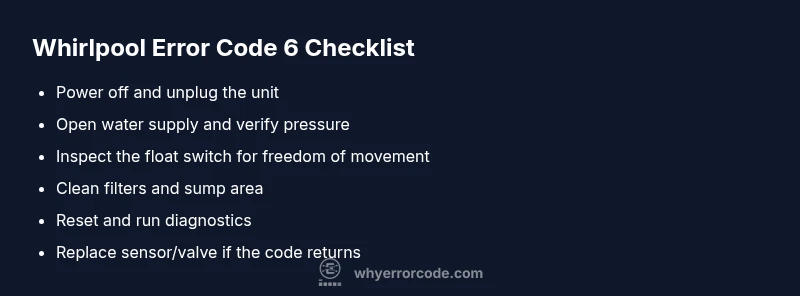

Quick Fixes to Try Before Dismantling
These quick fixes address the most common whirlpool dishwasher error code 6 scenarios:
- Power off the unit, then unplug and wait 60 seconds before plugging back in. This resets the microcontroller and can clear transient faults.
- Confirm the household water valve is fully open and there is adequate pressure.
- Inspect the float switch area for debris; remove any buildup and ensure the float can move freely.
- Clean the sump and visible filters to remove lint, food scraps, or mineral deposits that can affect readings.
- Re-seat all exposed connectors or crimped wires you can safely access.
- Run a brief diagnostic cycle if the model supports it, then observe whether the code returns.
Step-by-Step Fix: Float Switch Inspection
- Power down and unplug the dishwasher; ensure the water supply is off. 2) Access the float switch housing by removing the lower access panel or front kick plate as needed. 3) Visually inspect for debris or mineral buildup around the float and float lever. 4) Move the float manually to verify it travels smoothly without sticking. 5) Rinse the float chamber with warm water to remove any residue and reassemble. 6) Restore power and run a test cycle to confirm whirlpool dishwasher error code 6 is cleared.
Other Possible Causes and Solutions
If code 6 persists after float-switch servicing, newer problems might be involved. A failing pressure or flow sensor can return the same fault symbol, requiring professional calibration or sensor replacement. Damaged wiring or a faulty control board can also trigger whirlpool dishwasher error code 6; these issues generally require a technician and may involve module replacement. In many cases, a combination of sensor, valve, or board fault exists, so a staged diagnostic approach helps pinpoint the exact component.
Safety, Warnings, and When to Call a Professional
Always disconnect power before opening panels. Water and electricity pose a serious risk; never touch live components. If you detect visible burn marks, a burning smell, or leaking water during testing, stop immediately and call a licensed tech. If the unit is under warranty, consult the manufacturer’s service policy first. For whirlpool dishwasher error code 6 that persists after basic fixes, expect to pay for parts and labor; typical ranges vary by model and region, so obtain a formal estimate before proceeding.
Steps
Estimated time: 60-90 minutes
- 1
Power Down and Safety Check
Unplug the unit, switch off the water supply, and wait a minute to discharge capacitors. This step reduces the risk of electric shock while you inspect the interior components.
Tip: Always start with power isolation before touching electrical parts. - 2
Inspect the Float Switch Area
Open the lower panel to locate the float switch and chamber. Look for visible debris and ensure the float lever can move freely without sticking.
Tip: Use a flashlight and a plastic tool to avoid bending delicate parts. - 3
Clean Filters and Sump
Remove accessible filters and rinse them under running water. Wipe away residue and inspect the sump area for obstructions that could affect readings.
Tip: Don’t use harsh chemicals that could leave residues. - 4
Test Water Inlet Path
Ensure the water inlet valve receives full voltage when commanded and inspect the hose for kinks. Replace a clogged screen if you find buildup.
Tip: Shutoff valves should be fully open before testing. - 5
Reset and Run Diagnostics
Reconnect power, run a basic diagnostic cycle if available, and monitor the light indicators for any new codes or patterns.
Tip: Keep a log of any recurring codes for service reference. - 6
Decide on Repair Path
If the code returns, decide whether to replace the sensor, valve, or control board or call a professional for an accurate diagnosis and safe repair.
Tip: Do not replace multiple parts blindly; test each component systematically.
Diagnosis: Whirlpool dishwasher shows error code 6 during a cycle
Possible Causes
- highWater level sensor issue or float switch misread
- mediumClogged or blocked water inlet filter or screen
- lowControl board calibration drift or communication fault
- lowWiring or sensor harness fault
Fixes
- easyReset the dishwasher and run a basic diagnostic cycle
- easyInspect and clean the float switch and sump filter
- easyCheck the water inlet valve screen and supply line for debris
- hardReplace faulty sensor, valve, or control board
Frequently Asked Questions
What does whirlpool dishwasher error code 6 mean?
Error code 6 on Whirlpool dishwashers points to a fault in the water level sensing system, often the float switch or sensor. It typically prevents proper filling and cycle advancement. Start with safety checks, reset, and inspect the float chamber before moving to sensor replacement.
Whirlpool code 6 usually means a water level sensor issue. Start with a reset and float switch check, then inspect the inlet and sensors if needed.
Is code 6 dangerous or a safety risk?
Code 6 is not typically dangerous, but it can lead to leaks or floods if water level is misread. Always unplug and shut off water before inspection and call a pro if you notice leaks or burning smells.
Code 6 isn’t usually dangerous, but take care to avoid leaks and unplug the unit before work. Call a pro if you spot water damage.
Can I fix whirlpool dishwasher error code 6 myself?
Yes, many fixes start with a simple reset, float-switch cleaning, and filter clearing. If the code persists after basic steps, sensor or control-board components may require professional service or replacement.
Yes, you can start with a reset and float-switch cleaning, but if it stays, a pro may be needed.
Does the water supply affect code 6?
Insufficient water pressure or a closed valve can trigger misleading readings and code 6. Confirm the supply valve is fully open and there’s adequate pressure before deeper diagnostics.
Yes—low water pressure or a closed valve can trigger code 6. Check the supply first.
When should I replace parts for code 6?
If sensor, inlet valve, or control-board faults are confirmed, replacements are warranted. Expect parts and labor costs in a broad range depending on model and region; a professional estimate is advised.
If the fault is with the sensor, valve, or control board, replacement is needed. Get an estimate before proceeding.
Watch Video
Top Takeaways
- Identify code 6 as a sensor/float issue
- Start with safety, reset, and basic cleaning
- Inspect float switch and water inlet first
- Call a pro if the code persists after steps
