Whirlpool Error Code 04: Quick Fixes and Diagnostics

Understanding Whirlpool Error Code 04

Whirlpool error code 04 indicates a drainage fault during a wash cycle. This isn't a single component failing; it's an indication that the washer attempted to drain, but the flow was blocked or the system failed to confirm a complete drain within the expected time window. In practice, this means water may remain in the tub, and the machine may halt with the code visible on the display. According to Why Error Code, this code often points to the drainage subsystem—hoses, filters, pumps, and the control logic that times drain cycles. Recognizing code 04 quickly helps prevent water pooling and mold growth in the laundry area. In most cases, a simple reset followed by a quick physical check of the drain path resolves the issue without tools. If the issue persists, more thorough testing of the pump and sensor may be needed.

When you see this code, act promptly—water in the drum can lead to odor and possible damage if left unresolved. The goal is to restore a clear, unobstructed path for used water to exit and to verify the machine’s ability to sense that the drain is complete. This section provides practical steps you can take safely, plus guidance on when professional help is warranted.

Why It Happens: Common Scenarios

Error code 04 usually arises from a drainage bottleneck rather than a motor failure. The most frequent scenarios include a clogged filter or pump screen, a kinked or blocked drain hose, or debris in the pump impeller. Less common but possible causes are a faulty water level sensor or a failing control board that misreads the drain status. The order of likelihood tends to be: 1) drain filter/pump blockage, 2) drain hose blockage, 3) sensor or board issues, 4) pump failure. Practically, start with the simplest checks first, because those are often resolved with minimal tools and time. For many users, a quick hose straightening and filter cleaning fixes the code.

Quick Fixes You Can Try Safely

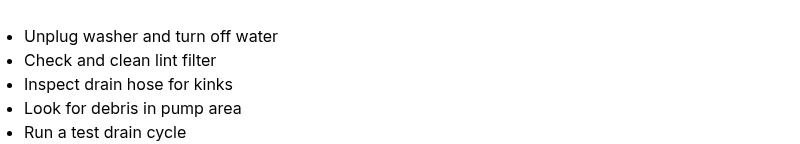

Before you begin, unplug the machine and turn off the water supply to avoid shocks or leaks. Then, perform these safe, non-destructive checks:

• Inspect and clean the lint/coin filter near the bottom of the door or in the pump housing; remove any debris.
• Detach and inspect the drain hose for kinks, blockages, or crushing, and straighten any bends.
• Check the drain pump area for visible obstructions; remove lint, thread, or small objects.
• Run a short drain-test cycle with no load to observe if water drains freely.
• If your model allows, reset the control board by power cycling: unplug for 60 seconds, then plug back in.

These steps often resolve Code 04 without tools or professional help. If the washer still shows the code after these checks, you’ll need deeper diagnostics or part replacement.

In-Depth Diagnosis Flow: Step-By-Step Thinking

A systematic approach helps isolate the fault without unnecessary disassembly. Start with the path water follows when draining: tub → pump → filter → hose → drain. If water remains after an attempted drain, the blockage is usually upstream of the pump. If the tub drains slowly but not completely, the pump may be underperforming or the impeller stuck. When a blockage is cleared and the code remains, the problem shifts toward sensors or the control board. This method mirrors what a technician would do but allows you to validate the most probable causes before calling for service. Always verify model-specific instructions in your user manual, since Whirlpool designs vary by series.

Costs, Repairs, and When to Hire a Pro

Repair costs for Code 04 vary based on the root cause and your location. A simple part like a lint filter or hose might cost around $10–$40 in parts if you DIY, while a replacement drain pump could run $60–$200 in parts. Labor charges from a technician typically range from $60–$150 per hour, with a full pump or control-board replacement potentially totaling $150–$500 depending on the model and regional pricing. If multiple components are involved or if you’re uncomfortable with electrical connections, professional service is recommended. Remember: routine maintenance and timely cleaning dramatically reduce recurrence risk.

Prevention and Best Practices

Proactive maintenance helps prevent Code 04 from recurring. Regularly:

• Inspect and clean the lint filter and pump screen every 1–3 months, depending on usage.
• Check the drain hose for kinks, length, and proper height installation to avoid siphoning.
• Run a monthly maintenance cycle with an empty drum using a washer-safe cleaner to keep the pump and hoses clear.
• Note any changes in drainage behavior (slower draining, unusual noises); address early before the code triggers.

Safe handling and prompt action are your best defense against drainage faults.

What to Expect from a Technician

If you need a pro, expect a diagnostic visit to confirm the drain path and to test the pump, sensor, and control board. Typical service calls involve inspection of the pump impeller, testing electrical connections, and verifying software status. Typical repair times can range from 1–3 hours depending on the fault, with parts and labor bundled into a final estimate. For certainty, ask for a written estimate that includes part costs, labor, and a separate line for diagnostics.
