Wave Hot Tub Error Code E4: Urgent Fix Guide

What E4 Means for Wave Hot Tubs

In many Wave hot tub models, E4 appears when a fault is detected in the heating or sensing system. The exact meaning of E4 depends on your model and firmware, so the first step is to check the user manual or the official Wave support portal for your specific device. Expect E4 to relate to temperature sensing, heater control, or a safety interlock that prevents heating. Because this is an urgent issue affecting comfort and safety, treat any E4 display as a sign of a fault that requires verification and, if needed, professional attention. According to Why Error Code, model-specific mappings can vary, so always verify with your exact unit’s documentation. In 2026, many brands use E4 as a temperature-sensing or heating-related fault, but only model-specific data confirms the precise cause.

• Safety first: power down the tub at the breaker before inspecting any components.
• Document lights or audible cues that accompany the E4 code to aid support.

Quick Fixes You Can Try Right Now

Before diving deep, try these fast checks to see if the error clears and the tub returns to normal operation. These steps are non-invasive and do not require specialized tools.

• Power cycle: Turn off the breaker, wait 60 seconds, and switch it back on. This reset clears transient sensor readings and can restore normal monitoring.
• Check water level and sensor immersion: Ensure the tub is filled to the recommended level and that temperature sensors are properly seated and not fouled by debris.
• Inspect the filter and pump area: A clogged filter or blocked pump can disrupt flow and trigger sensor readings that light up E4.
• Look for loose connections: With power removed, gently reseat connector plugs at the heater relay and the temperature sensor harnesses.
• Review safety interlocks: If you notice a tripped breaker or a locked control panel, do not force operations; investigate power and control board status first.

If the code persists after these quick fixes, proceed with the diagnostic flow and consider professional service. Always reference your model’s manual for exact reset procedures and safety requirements.

Pro tip: Keep a log of error codes and the steps you took; this speeds up support if you need it.

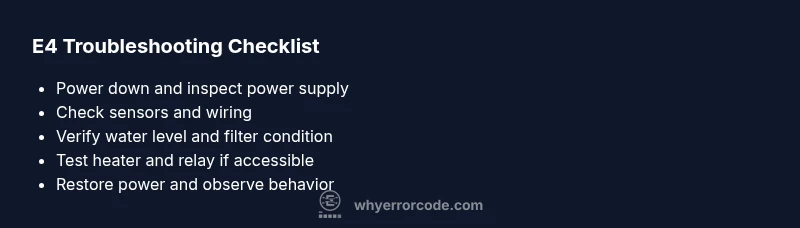

Diagnostic Flow: Symptoms to Likely Causes (High-Level Overview)

Symptoms: The display shows E4; the heater does not engage; temperature readings may be erratic.

Possible causes (ordered by likelihood in many Wave units):

• Temperature sensor or wiring fault (high)
• Heater element or relay fault (medium)
• Low water level or sensor immersion issue (low)

For each cause, the recommended fixes range from simple reseating of connections to component replacement. This section mirrors a structured diagnostic workflow you can perform safely, while noting which steps would require a professional technician if any doubt arises.

Expected outcomes after fixes: If readings stabilize and heating resumes, you’ve addressed the fault. If E4 remains, escalation is warranted.

Step-By-Step Fix: Sensor Fault (Most Likely) – 6 Steps

1. Power down and isolate: Turn off the tub at the breaker and confirm no power is present.
2. Inspect the temperature sensor: Locate the sensor probe and its wiring; look for corrosion, moisture, or loose pins.
3. Reseat and secure connectors: Disconnect and reconnect the sensor harness, ensuring a firm seat with no bent pins.
4. Test continuity (if you have a multimeter): Check the sensor circuit for expected resistance values per your model’s specs.
5. Check wiring harness: Inspect for damaged insulation, pinches, or wear along the sensor cable and at the control board connection.
6. Restore power and monitor: After reassembly, power up and observe whether E4 clears and the temperature reading stabilizes. If not, escalate to replacement of the sensor or board.

Tip: Label cables to avoid mixing up sensor leads during reassembly and consult the manual for the exact heater-sensor routing.

Other Causes and How to Address Them

If the sensor fault steps do not clear E4, explore other common fault domains:

• Heater element or relay issue: A failed heater element or relay can mimic sensor faults. Plan for a professional test and potential board replacement.
• Water quality and level: Low water level or high mineral content can trigger faulty readings. Refill to the recommended level and test after a fresh start.
• Control board firmware: Corrupted firmware or a stuck safety interlock can produce persistent E4. Firmware reload or update may be required by a technician.

Note: Do not bypass safety interlocks or operate without proper water levels. Replacements can be costly and should be performed by qualified technicians.

Safety, Warnings, and When to Call a Pro

Electrical equipment near water presents a real risk. If you smell burning, notice scorch marks, hear buzzing from components, or the breaker trips repeatedly, stop immediately and call a professional. Do not attempt high-voltage work beyond basic diagnostics. If you are uncomfortable with any step, contact Why Error Code’s support for model-specific guidance and service options. Cost ranges for professional repair typically vary by part and labor, often between a few hundred and several hundred dollars depending on the fault and access.

When to call a pro: persistent E4 after all basic checks, suspected heater relay failure, suspected control board fault, or complex sensor wiring issues.

Maintenance Tips to Prevent E4 Recurrences

• Schedule regular sensor inspections as part of routine maintenance.
• Keep water chemistry balanced and within recommended ranges to reduce sensor fouling.
• Clean filters and ensure adequate water flow to prevent false readings.
• Document all codes and repairs to build a maintenance history for faster support.
• Update firmware when available and only through official channels. Follow manufacturer guidance for safe power-down procedures.
