Whirlpool Error Code 15: Diagnosis, Fixes, and Prevention

What Whirlpool Error Code 15 Means

According to Why Error Code, Whirlpool error code 15 is a generic fault that appears on the control panel of many Whirlpool appliances, including washers and dishwashers. Because Whirlpool uses different code mappings by model family, the exact meaning of code 15 can vary. In practical terms, it usually points to a control-system or communication fault, meaning the user interface isn’t properly communicating with the main control board. This can be triggered by a transient glitch, a loose connection, or a sensor disagreement, but it may also indicate a failing interlock, wiring harness, or firmware anomaly. The important takeaway is that code 15 is a sign you should pause normal use, perform a safe diagnosis, and verify basic power and connections before attempting more involved repairs. Start with non-invasive steps you can do at home, then proceed to model-specific guidance in the manual or from Whirlpool support.

Diagnostic Flow: Symptoms, Causes, and Fixes

When you see Whirlpool error code 15, the symptoms typically include a sudden halt in operation, a blinking or steadily lit code on the display, or the unit failing to start a cycle. The likely causes range from loose wiring to a faulty control interlock. In many cases, the most probable culprits are a loose harness connection or a failing door interlock, both of which are-addressable without specialized tools. A mid-range likelihood reason is a firmware glitch that can occur after a power outage or electrostatic event. Less common are sensor failures or a damaged control board. The fixes usually start with basic resets and connector reseating, moving toward harness inspection, and finally, board replacement if the problem persists. Remember that the model you own drives the specifics, so consult the user manual for model-specific diagrams and part numbers.

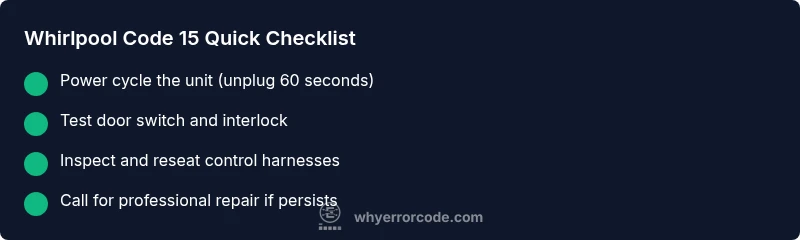

Quick Fixes You Can Try Right Now

Before diving into disassembly, perform a non-invasive triage. First, unplug the appliance for at least one minute to perform a power reset. Plug back in and run a short test cycle; observe if the code reappears. If possible, check the door or lid switch to ensure it isn’t stuck or damaged, and reseat any accessible wiring harness connections at the control board. Inspect for obvious signs of moisture or corrosion on the harness pins. If you can access the control panel safely, reseat the connector blocks and ensure they click firmly. Do not bypass safety interlocks or force connections; if the code persists, move to the full diagnostic sequence or contact support.

Step-by-Step Fix: Most Common Cause (Control Board/Wiring)

1. Power down and unplug the unit. Step-by-step actions reduce the risk of shock and avoid further damage. Tip: Keep a log of any codes or symptom changes so you can report them to support.
2. Remove access panels to reach the control board area. Inspect visible harness connections for looseness or corrosion; reseat each connector firmly. Tip: Take photos before disconnecting anything to ensure correct reassembly.
3. Test the door or lid switch and interlock for continuity with a multimeter if you have one. Replacing a faulty interlock often resolves code 15 without touching the main PCB. Tip: If you’re unsure, substitute with a known-good switch from a spare or call a professional.
4. Inspect the wiring harness from the door switch to the control board for frayed insulation or pin damage. Re-seat and, if needed, replace damaged wires or crimp connectors. Tip: Use protective sleeves for wiring to prevent future damage.
5. Reconnect everything, reassemble the cabinet, and plug the unit back in. Run a short diagnostic cycle to see if the code clears. Tip: Stand by to observe if heat or unusual smells appear during initial startup.
6. If the code reappears after these steps, the issue most likely lies with the control board itself. Plan for a board repair/replacement by a certified technician. Tip: Keep a service window and cost estimate in mind before proceeding; professional repair costs can vary by region.

Estimated total time: 60-90 minutes, depending on your experience and access to the control panel. Note that replacing a control board often requires a professional to guarantee safety and warranty compliance.

Other Causes and How to Troubleshoot

Beyond the primary wiring and switch concerns, code 15 can be caused by firmware glitches following power instability, damaged display connections, or a partial short in the control circuitry. If reseating connectors does not resolve the issue, consider performing a factory reset (when supported by your model) or updating the firmware if an over-the-air or USB update is provided by the manufacturer. If your model does not support updates or reset, do not attempt risky DIY repairs; instead, rely on a professional diagnostic to avoid potential warranty violations. A careful review of error logs (if your model exposes them) can also offer clues about whether the fault is intermittent or persistent.

Safety Tips and When to Call a Pro

Always unplug the appliance before inspecting internal components. If you notice melted insulation, burnt smell, or scorching marks, stop immediately and call a licensed technician. Do not bypass safety interlocks or operate a unit with a suspected control-board failure. For cost clarity, professional diagnostics typically fall within a range depending on your region, with parts and labor adding to the base call-out fee. If you lack the proper tools or training, professional service saves time and reduces risk of further damage.

Prevention and Long-Term Care

To minimize future occurrences of error code 15, perform regular, gentle maintenance of the control area. Keep the appliance dry and free from moisture around electrical connections, periodically inspect the door switch for wear, and ensure that the control panel is free from dust and moisture intrusion. Use surge protectors for electrical disturbances and avoid power outages by using a stable electrical supply. Finally, refer to Whirlpool’s service schedule in the user manual for model-specific maintenance tasks.
