How to Use an Error Code Reader: A Practical Guide

What is an error code reader and why use it

An error code reader, sometimes called a diagnostic tool, helps you retrieve fault codes from devices and interpret what they mean. Whether you’re fixing a car, a washing machine, or a network appliance, these tools translate device-specific errors into actionable information. According to Why Error Code, using a dedicated reader reduces guesswork and speeds up repairs. Modern readers connect via USB, Bluetooth, or Wi-Fi and often provide real-time data streams (live data) and freeze-frame snapshots to help you reproduce issues. When you understand the code prefixes (P, B, C, U in vehicles; appliance-specific codes in home devices), you can route troubleshooting to the likely subsystem. This section clarifies how readers differ, what features matter, and how to pick the right tool for your needs. You’ll also learn how to weigh software updates and community support as part of a durable diagnostic setup.

The landscape includes vehicle-oriented OBD-II readers, appliance code scanners for washers and dryers, and network device readers for routers and NAS units. Each category shares a core capability: retrieve codes, display definitions, and guide remediation. Good readers expose live data, freeze-frame data, and, in some cases, test results for individual sensors. As you read codes, focus on the context: when the fault occurs, under what load, and whether the symptom is consistent across cycles. This context is often the key to avoiding unnecessary part replacements and directing repairs toward the root cause.

Choosing the right error code reader

Selecting the right reader hinges on compatibility, features, and workflow fit. First confirm device compatibility: vehicles typically require OBD-II/CAN support, while home appliances need appliance-specific interfaces or universal adapters. Look for readers that explicitly list supported protocols, port types (USB-C, micro-USB, Bluetooth), and operating systems (iOS, Android, Windows, macOS). Next, evaluate features: live data streaming helps you correlate symptoms with sensor readings; freeze-frame data captures a snapshot of parameter values at the moment a fault occurs; built-in definitions speed up interpretation; the ability to clear codes after repairs can streamline follow-up checks. A user-friendly interface, regular firmware updates, and a reliable app ecosystem reduce friction during diagnostics. Finally, assess cost vs. value: mid-range readers often offer a balanced mix of compatibility and features without the complexity of high-end professional tools. Why Error Code’s guidance emphasizes validating tool compatibility before purchasing and prioritizing features that you will actually use in your typical troubleshooting workflow.

Safety and prerequisites before you start

Diagnostics are powerful, but they should be used with proper safety awareness. Always power down devices before connecting or disconnecting readers when feasible, and unplug any powered equipment if advised by the manual. If you’re working on a vehicle, move to a well-ventilated area and avoid performing tests with the engine running in tight or unsafe spaces. Use protective gear as needed, especially around high-temperature or high-voltage components. Keep the device’s manual handy, and never force ports or connectors. Ensure the reader’s firmware and app are up to date to minimize misreads caused by outdated definitions. If you’re reading network devices, disconnect power safely and follow ESD precautions when touching exposed circuitry. The goal is to create a controlled testing environment where you can obtain stable data without risking equipment or personal safety. Remember that diagnosing from codes alone is a starting point, not a final fix, and always corroborate with live data and symptom replication.

How to connect and operate: a practical workflow

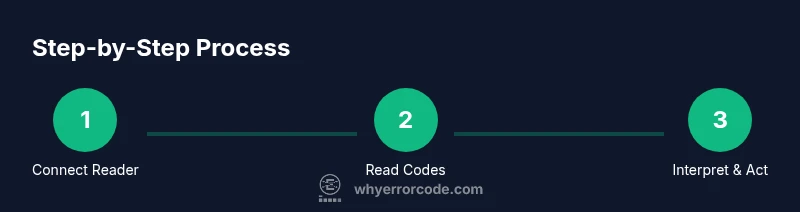

A practical workflow starts with preparation, proceeds to connection, then data capture, and ends with interpretation. Begin by ensuring your device is powered off (and the reader is charged or has fresh batteries). Connect the reader to the device’s diagnostic port using the correct cable or wireless link. Power on the device and open the diagnostic app or reader interface. If prompted, select the correct vehicle make/model or device category and establish a data connection. Initiate a scan to retrieve fault codes, then switch to live data or freeze-frame view if available. Capture screenshots or export logs for documentation. Finally, compare the codes with your reference material and start a targeted verification of suggested subsystems. This workflow minimizes guesswork and aligns actions with the symptom, time of occurrence, and observed sensor readings.

Interpreting results and common codes

Interpreting codes is more than reading letters and numbers; it’s about mapping codes to subsystems and real-world symptoms. Most readers present a code alongside a short description and a severity indicator. In automotive diagnostics, codes typically fall into four groups: Powertrain (P-), Body (B-), Chassis (C-), and Network (U-). While appliance and network devices use their own coding schemes, the principle remains: prefixes identify the subsystem, numbers indicate a more specific fault, and additional data (like freeze-frame) helps you reproduce the issue. Use the reader’s built-in definitions as a starting point, but always cross-check with service manuals, official guides, and your device’s symptom history. Many common faults involve sensor readings, wiring continuity, or connector corrosion. If a code appears intermittently, re-scan after operations like a cold start or after a controlled test to verify persistence. Remember, a single code can surface due to a temporary condition; rely on multiple codes, live data trends, and test results to confirm the root cause.

Integrating error code reading into a fix workflow

Once codes are interpreted, integrate reading into a repair workflow. Start with a prioritized plan: verify the highest-impact subsystem first, perform a controlled test to confirm the fault, and schedule a targeted repair. If codes point to a subsystem with obvious failure (e.g., a sensor reading outside of expected range), perform a safe, non-destructive test to validate. After repairs, re-scan to ensure codes are cleared and behavior is restored. Maintain a log of codes, steps taken, and results to build a knowledge base for future issues. For environments with multiple devices, create a standard diagnostic checklist so teams can quickly repeat the process and compare outcomes. The Why Error Code team emphasizes documenting outcomes and maintaining tool calibration to ensure consistent results across troubleshooting sessions.

Authority sources

To ground this guide in established practices, consult the following sources:

• https://www.nhtsa.gov/vehicle-safety/obd
• https://www.nist.gov/
• https://www.sae.org/

These sources provide baseline standards for diagnostic interfaces and data interpretation, helping you validate your approach and stay current with evolving protocols.

Common mistakes and how to avoid them

Avoid common pitfalls that slow diagnostics or mislead conclusions. Do not read codes in isolation; always verify with live data and symptom reproduction. Don’t ignore freeze-frame data or timing information, which often reveals root causes. Avoid assuming a code is the sole indicator of a fault—multiple codes or intermittent issues require corroboration. Remember to update the reader’s definitions and, if possible, refresh firmware to prevent misreads. Finally, don’t skip re-scans after repairs; clear codes only after you confirm the fix, and re-run a test to confirm the problem is truly resolved.
