Quick AnswerFact

An inverter 09 error code generally signals a generic fault across many inverter models. It often appears with a warning light, reduced output, or automatic shutdown. The quick fix is to power cycle the unit, verify ventilation, inspect DC and AC connections, and reset to default settings. If the error persists, consult the manual or contact support before attempting major repairs.

What the inverter 09 error code means

Inverter error codes are designed to protect equipment and personnel, but their meanings differ by manufacturer. The inverter 09 error code is a generic fault that many brands reuse for any non-specific problem that blocks safe operation. Because of this variation, you should not assume a single universal meaning, but treat 09 as a prompt to run through a structured check. In practice, 09 often appears when the device detects abnormal conditions on the DC side, overheating on the power electronics, or a fault in the communication between the control board and sensors. The result is protective shutdown or limited output until the fault is cleared. According to Why Error Code, the critical first steps are to confirm you are reading the correct code for your exact model, gather the device serial, firmware version, and recent changes, and then proceed with a cautious diagnostic flow. If your unit is under warranty, consult the vendor first. The overall message is urgent: do not ignore 09, as continuing operation can cause damage or safety risks. The goal is a safe reset or targeted repair rather than a blundered DIY fix.

Symptoms that often accompany inverter 09

Warning LEDs or display indicators illuminate alongside reduced output
The inverter shuts down under load or trips the circuit breaker
Strange odors, excessive heat, or fans running at full speed
Firmware or control panel messages mentioning fault 09 plus other codes
Recent changes in wiring, energy input, or temperature conditions

Why 09 is often model-specific yet symptom-consistent

Manufacturers reuse the 09 code across diverse architectures, which means the same label can reflect different root causes depending on the model. The common thread is a protective action triggered by an anomaly the unit cannot safely tolerate. This is why the diagnostic workflow emphasizes cross-checking the exact model, firmware version, and any recent changes or events (like a storm, brownouts, or a connection rework). Understanding this helps you prioritize checks that are most likely to resolve the fault without unnecessary replacement parts.

Quick checks you can perform safely (no tools required)

Power down the device, then power back up to reset the fault memory
Visually inspect for obvious ventilation blockages or debris near cooling intakes
Confirm all external connections are snug, especially DC input and AC output cables
Check for any tripped fuses or circuit breakers in the service panel
If available, note any error blink patterns or secondary codes that appear with 09

When to escalate: safety and reliability considerations

If the unit is under warranty, contact the OEM immediately before attempting internal inspections that could void coverage. For high-power industrial inverters or systems connected to critical loads, engage a qualified technician. Never work on live terminals, and always use appropriate PPE. If the unit is making unusual noises, emitting smoke, or showing severe heat, stop immediately and disconnect from power.

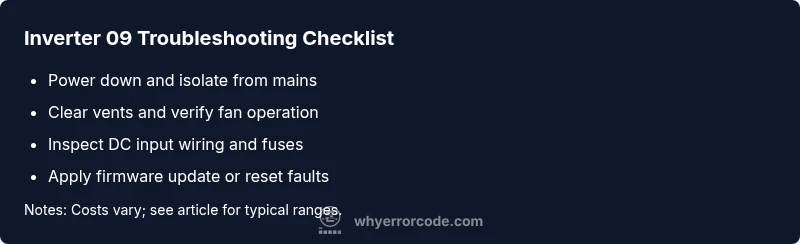

Steps

Estimated time: 60-90 minutes

1
Power down and isolate the inverter
Shut off the inverter and disconnect from all power sources. If it’s part of a larger system, isolate the main input at the service panel. Wait 5-10 minutes to allow capacitors to discharge safely.
Tip: Always work with dry hands and use insulated tools.
2
Check cooling and ventilation
Inspect all vents and fans for dust, debris, or damage. Remove obstructions and clean using a soft brush or compressed air. Ensure the ambient temperature is within spec and there’s adequate clearance around the unit.
Tip: A freezer brush or canned air with low pressure works well without harming components.
3
Inspect wiring and fuses on the DC side
Open access panels and examine DC input cables for signs of wear, looseness, or corrosion. Verify fuses are intact and rated correctly. Reseat all connectors firmly, but do not force them.
Tip: Take a photo of wiring before reseating to aid reassembly.
4
Test for fault memory and reset
Use the inverter’s menu to read fault memory if available. Clear codes and perform a soft reset or factory reset if recommended by the manual. Reconnect power and observe if 09 returns.
Tip: Document the fault codes before resetting; they guide future diagnostics.
5
Update firmware or software
Check the manufacturer’s site for firmware updates. Apply updates if available and reboot. Some models require a USB tool or vendor software to complete the update.
Tip: Software updates can fix misinterpretations of sensor data causing 09.
6
Evaluate need for professional repair
If 09 persists after these steps, a professional service should diagnose potential board or sensor faults that require specialized tools.
Tip: If under warranty, avoid DIY parts replacements to preserve coverage.

Diagnosis: Inverter 09 error code appears, inverter shuts down under load

Possible Causes

highOverheating due to inadequate cooling or blocked vents
mediumDC bus over/under voltage or unstable input wiring
lowControl board, firmware, or sensor communication fault

Fixes

easyEnsure proper airflow; clear vents and verify fan operation
easyInspect DC input wiring, connectors, and fuses for looseness or damage
easyUpdate firmware if available or reset fault codes in the control panel
hardIf issues persist, perform a controlled test under light load or replace the control board

Pro Tip: Document every step, including photos of connectors and settings.

Warning: High-voltage DC circuits can retain dangerous energy even when unplugged.

Note: Warranty may be affected by DIY repairs—check terms first.

Frequently Asked Questions

What does inverter 09 error code mean across brands?

Across brands, 09 usually signals a generic fault that triggers protective shutdown. The exact cause varies by model, so consult the manual for your specific unit and follow a structured diagnostic flow.

Can I fix inverter 09 without a professional?

Some basic checks, like drying vents, reseating connections, and performing a soft reset, can be done safely by a competent user. For hardware faults on the control board or firmware, professional service is recommended.

How do I reset the 09 fault after safe checks?

Use the inverter’s fault memory menu to clear the 09 code, then perform a controlled restart. If the code reappears, record all accompanying codes and consult the manual or vendor support.

Is overheating the most common cause of inverter 09?

Overheating is a frequent cause when 09 appears, but many brands also flag DC input irregularities or sensor faults. A thorough airflow check and wiring inspection are essential steps.

What costs should I expect for repair?

Repair costs vary with model and fault severity. Simple fixes can be modest, while board-level faults or replacements may run into the hundreds to low thousands of dollars, depending on parts and labor.
