How to Read Fault Codes Without a Diagnostic Tool
Learn how to read fault codes without a diagnostic tool using LED indicators, display messages, and service manuals. A practical, safe approach for developers, IT pros, and everyday users troubleshooting error codes.
By using built-in indicators and reference guides, you can read fault codes without a dedicated diagnostic tool. Look for LED blink patterns, on-device error messages, and memory codes in your device’s manual. With careful observation and proper safety, you can identify the general fault category and guide your next fix.
What reading fault codes without a diagnostic tool means
Reading fault codes without a diagnostic tool means using built-in indicators and documented patterns to identify issues. According to Why Error Code, many consumer devices embed fault indicator logic in LEDs, display messages, or memory-resident codes you can interpret with official manuals. You won't see a sleek numerical code on a hidden screen; instead you must decode a sequence of signals that point to a fault family, component, or subsystem. This approach doesn't replace professional diagnostics, but it gives you a fast, educated first pass that can save time and help you decide whether a tool-based scan is warranted.
Key advantages include speed, portability, and privacy: you can troubleshoot in the field or at home without shipping the device or pulling it apart. However, you should respect safety guidelines: power down completely before poking around, avoid touching exposed circuitry, and never rely on a pattern alone if the device's safety features are active. In many devices, the indicator system is designed to provide coarse information (power, communication, sensor status) rather than a precise error code. The skill lies in correlating patterns with documented fault families and cross-checking with the device's service guide. The bottom line: learning to read codes without a diagnostic tool is about pattern recognition, disciplined observation, and using primary sources to confirm what you suspect.
note: null
Tools & Materials
- Device manual or official service guide(PDF or online access for your exact model and revision)
- Device model and serial number(Needed to ensure you reference the correct fault-code mapping)
- Good lighting and a clean workspace(Clear visibility helps you observe subtle blink patterns)
- Notepad and pen(Document codes, patterns, and steps for later reference)
- Smartphone or camera (optional)(Capture patterns or screenshots of any displays)
- Basic safety gear(Gloves or eye protection if handling energized hardware is required)

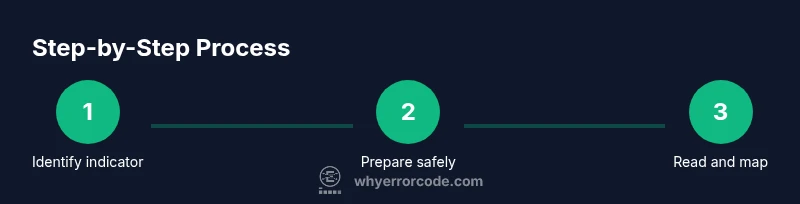

Steps
Estimated time: 60-90 minutes
- 1
Identify indicator method
Locate the device’s fault indicators: LEDs, display messages, or symbols. Note whether the indicator is steady, flashing, or alternating. Identifying the exact indicator type is essential before you begin interpreting patterns.
Tip: If multiple indicators exist, focus on the primary fault LED or the message area to avoid mixed signals. - 2
Ensure safe power conditions
Power down the device completely. If feasible, unplug or disconnect power sources and discharge stored energy according to the manufacturer’s recommendations. This reduces shock risk and prevents accidental resets during observation.
Tip: Never probe live terminals; wait for capacitors to discharge and follow safety guidelines specific to your device. - 3
Capture the observed pattern
Carefully observe the blink sequence or on-display code. If the device cycles through modes, record the sequence length, timing, and whether it occurs during startup, operation, or shutdown.
Tip: Take multiple observations to confirm consistency; a single anomaly may be environmental rather than fault-related. - 4
Consult the manual for mapping
Open the fault-code section in the manual and locate the mapping for your model. Match the observed pattern to the corresponding fault family or code entry. If the manual uses symbols instead of numbers, learn the symbol meanings.
Tip: If you cannot find a direct mapping, search official support pages for model-specific guidance or firmware notes. - 5
Cross-check with related symptoms
Review other symptoms the device exhibits: abnormal sounds, performance changes, or error memory after resets. Cross-referencing signals helps validate whether the code points to a real fault.
Tip: Document any correlated symptoms with timestamps to help diagnose root causes later. - 6
Test assumptions with a safe cycle
If possible, re-run a safe operating cycle to verify whether the same indicator pattern recurs. Repetition increases confidence that you’ve identified a fault category rather than a transient condition.
Tip: Do not perform aggressive tests; stick to manufacturer-approved safe cycles. - 7
Document findings and plan next steps
Create a concise fault-log: model, observed pattern, mapping reference, and any next actions. Use this log to decide whether you can fix it yourself, need a service visit, or require a diagnostic tool for a precise code.
Tip: Keep the log with the device for future troubleshooting and warranty purposes.
Frequently Asked Questions
Can I read all fault codes without a diagnostic tool?
Not every device stores a readable numeric code. Many rely on LED blink patterns, symbols, or memory logs that map to generic fault families. A manual reference is essential to interpret what you observe.
Not every device uses a numeric code. Look for LED blinks, symbols, or stored memory and always check the manual to interpret what you see.
What should I do if the LED blink pattern is unclear?
Improve lighting, observe timing precisely, and compare with the manual’s pattern descriptions. If patterns are ambiguous, document what you saw and seek official support.
If the blink pattern is unclear, try better lighting and consult the manual. If still unsure, reach out for support.
Is reading fault codes at home safe?
Yes, provided you power down correctly and follow the device’s safety guidelines. Do not expose yourself to live circuits or hazardous voltages.
Yes, as long as you power off and follow safety guidelines, reading codes at home is generally safe.
How can I verify a fault code without a scanner?
Cross-check observed patterns with the official manual and manufacturer support resources. Look for corroborating symptoms to confirm the fault’s likelihood.
Cross-check with the manual and supported resources; corroborate with symptoms to confirm the fault.
When should I contact a professional?
If indicators persist after basic checks, point to dangerous voltages, or you lack safe tools, seek professional service.
Call a professional if codes persist after basic checks or involve dangerous voltages.
Do all devices publish fault-code mappings publicly?
No. Some mappings are device-specific or restricted to official service portals. Use the device manual and sanctioned support channels to access accurate mappings.
Not all mappings are public; rely on the manual and official support for accuracy.
Watch Video
Top Takeaways
- Recognize LED and display indicators as primary data sources
- Always reference the exact device manual for mappings
- Document patterns and symptoms for reliable troubleshooting
- Safety first: power down and avoid risky disassembly
- Escalate to professional help when uncovering dangerous voltages or unclear codes
